帶線星空体育app在线
詳細介紹
室外燈具星空体育app在线，加濕器帶線星空体育网址大全,加濕器防水按鍵開關 IP67防塵星空体育app在线,帶燈防水按鍵開關，複位無燈防水按鍵開關

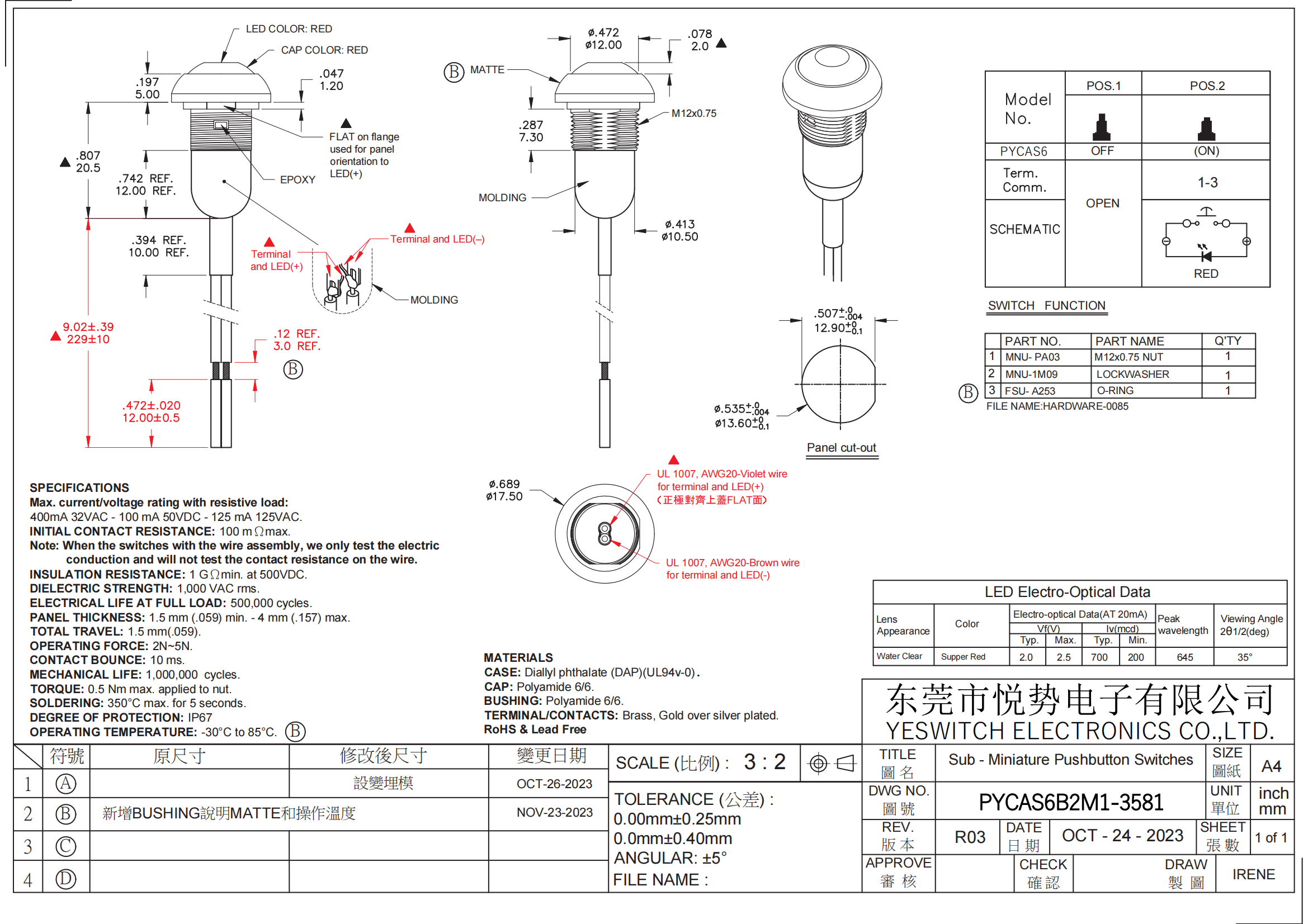

SPECIFICATIONS
Max. current/voltage rating with resistive load:
400mA 32VAC - 100 mA 50VDC - 125 mA 125VAC.
INITIAL CONTACT RESISTANCE: 100 mΩmax.
Note: when the switches with the wire assembly, we only test the electric
conduction and will not test the contact resistance on the wire.
INSULATION RESISTANCE: 1 GΩmin. at 500VDC.
DIELECTRIC STRENGTH: 1,000 VAC rms.
ELECTRICAL LIFE AT FULL LOAD: 500,000 cYcIes.
PANEL THICKNESS: 1.5 mm (.059) min. - 4 mm (.157) max.
TOTAL TRAVEL: 1.5 mm(.059).
OPERATING FORCE: 2N~5N.
CONTACT BOUNCE: 10 ms.
MECHANICAL LIFE: 1,000,000 cYcIes.
TORQUE: 0.5 Nm max. appIied to nut.
SOLDERING: 350。C max. for 5 seconds.
DEGREE OF PROTECTION: IP67
OPERATING TEMPERATURE: -30°C to 85°C.
MATERIALS
CASE: DiaIIYI phthaIate (DAP)(UL94v-0) .
CAP: PoIYamide 6/6.
BUSHING: PoIYamide 6/6.
TERMINAL/CONTACTS: Brass, GoId over siIver pIated.
RoHS & Lead Free
室外燈具星空体育app在线，加濕器帶線星空体育网址大全,加濕器防水按鍵開關 IP67防塵星空体育app在线,帶燈防水按鍵開關，複位無燈防水按鍵開關
SPECIFICATIONS
Max. current/voltage rating with resistive load:
400mA 32VAC - 100 mA 50VDC - 125 mA 125VAC.
INITIAL CONTACT RESISTANCE: 100 mΩmax.
Note: when the switches with the wire assembly, we only test the electric
conduction and will not test the contact resistance on the wire.
INSULATION RESISTANCE: 1 GΩmin. at 500VDC.
DIELECTRIC STRENGTH: 1,000 VAC rms.
ELECTRICAL LIFE AT FULL LOAD: 500,000 cYcIes.
PANEL THICKNESS: 1.5 mm (.059) min. - 4 mm (.157) max.
TOTAL TRAVEL: 1.5 mm(.059).
OPERATING FORCE: 2N~5N.
CONTACT BOUNCE: 10 ms.
MECHANICAL LIFE: 1,000,000 cYcIes.
TORQUE: 0.5 Nm max. appIied to nut.
SOLDERING: 350。C max. for 5 seconds.
DEGREE OF PROTECTION: IP67
OPERATING TEMPERATURE: -30°C to 85°C.
MATERIALS
CASE: DiaIIYI phthaIate (DAP)(UL94v-0) .
CAP: PoIYamide 6/6.
BUSHING: PoIYamide 6/6.
TERMINAL/CONTACTS: Brass, GoId over siIver pIated.
RoHS & Lead Free
