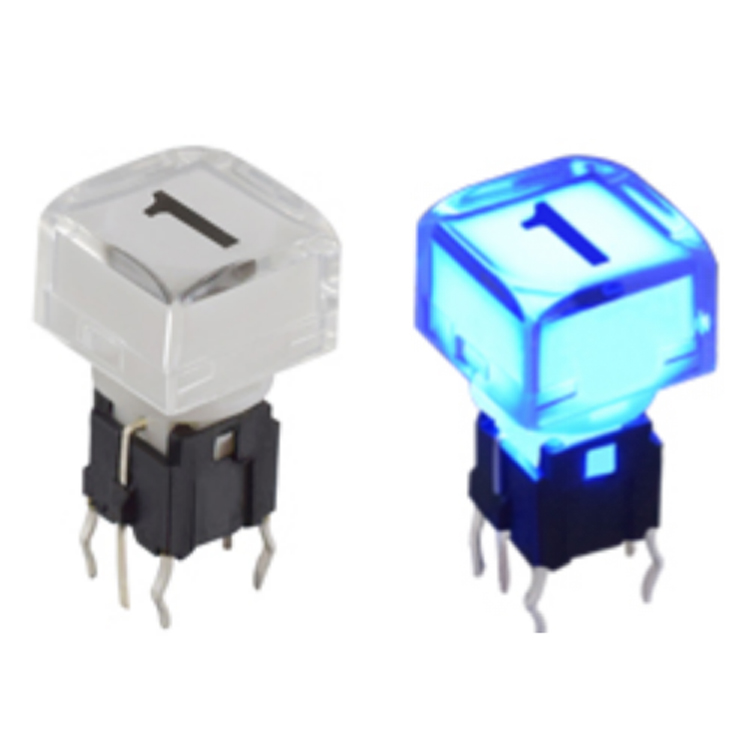

多色燈輕觸開關
詳細介紹
帶燈輕觸開關供應商，帶燈開關生產廠家，多色燈按鈕開關

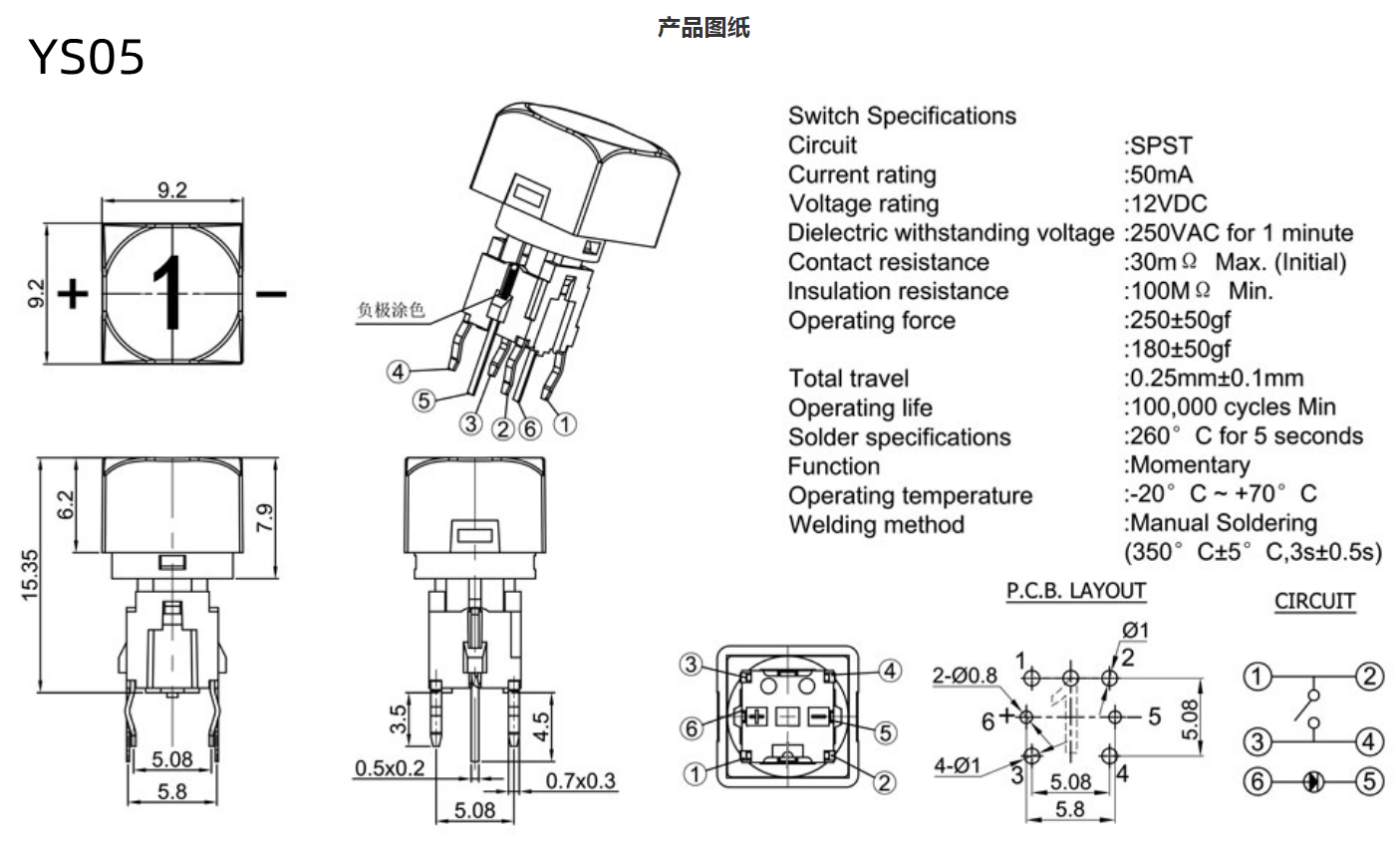

產(chan) 品規格:
Circuit : SPST 1P1T
Current Rating : 50mA
Voltage Rating : 12VDC
Dielectric withstanding voltage : 250VAC for 1 minute
Contact Resistance : 100mΩ Max .(initial)
Insulation Resistance : 100MΩ Min,
Operating Force : 180±50gf or 250±50gf
Total Travel : 0.25±0.1mm
Operating Force : 200,000 Cycles Min
Solder Specifications : 260℃ for 3 Seconds
Function : Momentary
Operating Temperature : -20℃~ +70℃
應用領域:
Audio/Visual 音響/視聽設備
Computer Peripherals 電腦外設
Consumer Electronics 消費類電子
Instrumentation 儀(yi) 器儀(yi) 表
Telecommunication 電信，通信設備
Medical Equipment 醫療設備
