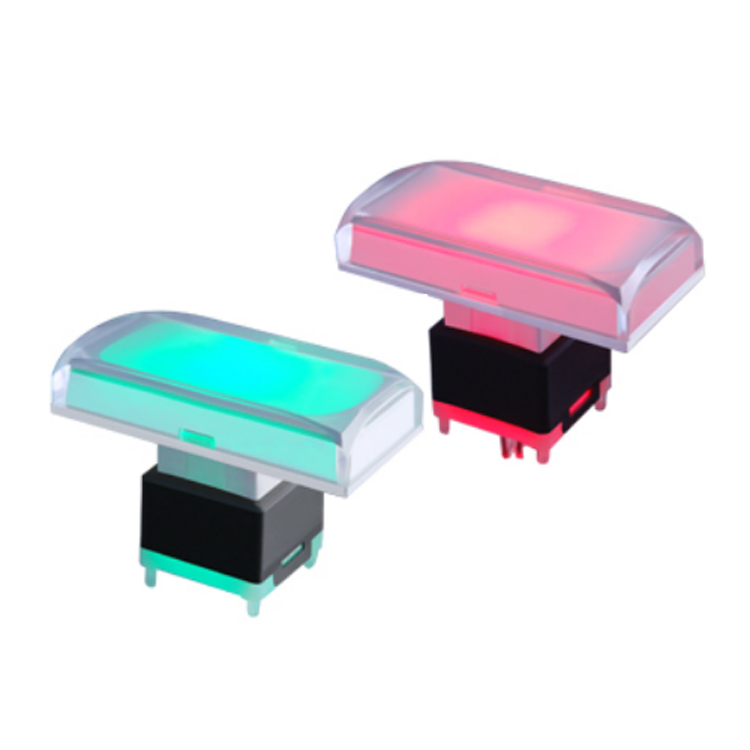

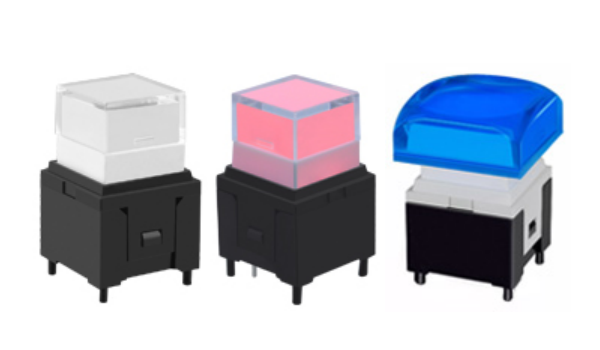

多色燈按鈕開關
詳細介紹
帶燈按鍵開關廠家，按鍵開關生產商，方形帶燈按鍵開關，帶燈輕觸按鍵開關，多色燈按鍵開關
產品規格:
產品規格:
Circuit :SPST
Current rating :100mA
Voltage rating :12VDC
Dielectric withstanding voltage :250VAC for 1 minute
(between contacts)(between contacts &case)
Contact resistance :200mΩ Max.( Initial)
Insulation resistance :100MΩ Min.
Operating force :250±100gf
Full travel :4.5mm±0.2mm
Mechanical life :over 2,000,000 cycles
Electrical life :Over 1,000,000 cycles
Manual welding :350℃ for 3 seconds
Operating temperature :-20℃~+70℃
Function :OFF-(ON)
應用領域:
Video processor 視頻處理器
Security Monitoring Equipment安防監控設備
Teaching recording and broadcasting equipment教學錄播設備
Consumer Electronics 消費類電子
Audio equipment 音響設備
