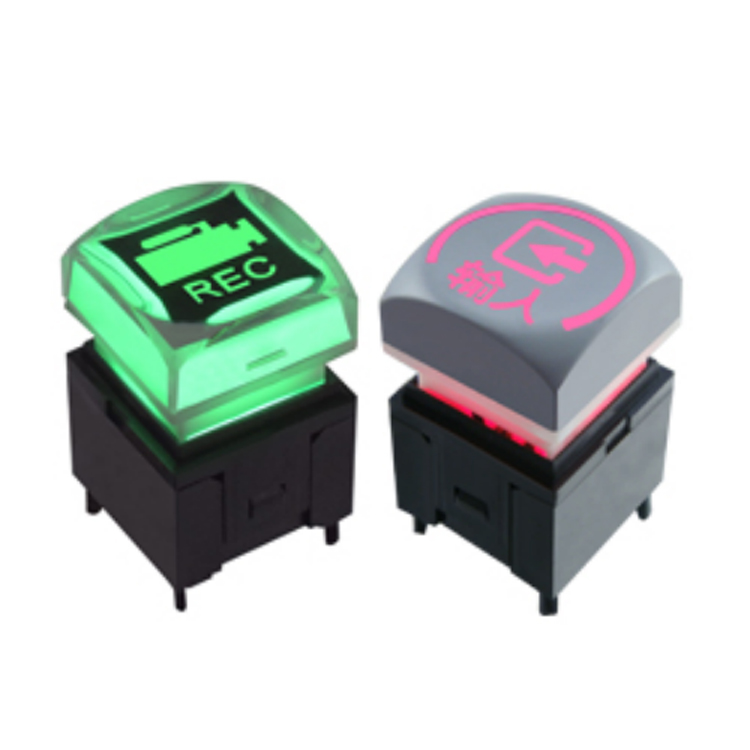

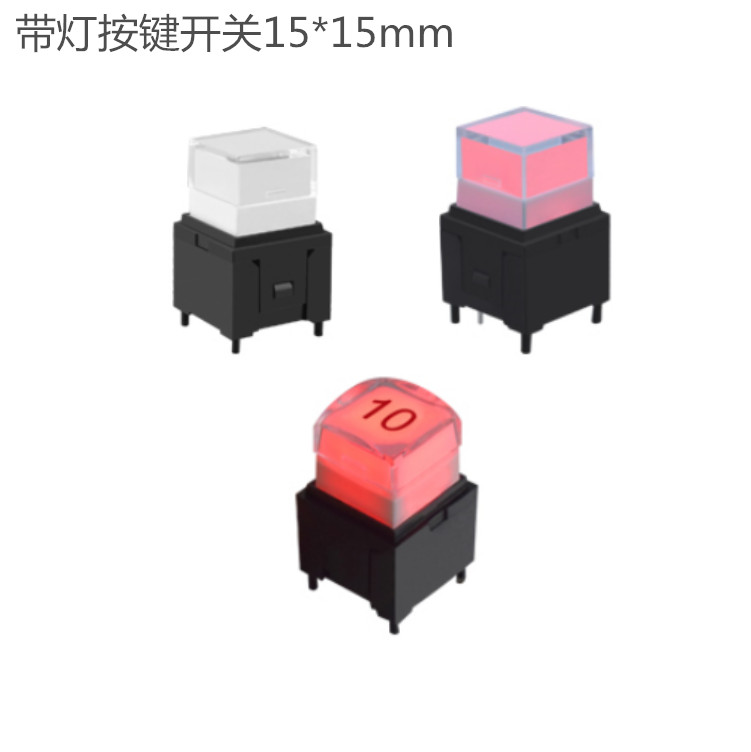

YS06帶燈按鍵開關
詳細介紹
YS06係列帶燈開關係列簡介
帶燈按鍵開關，小型按鍵開關，雙色燈按鍵開關廠家，方形帶燈按鍵開關，三色燈按鍵開關，多色燈按鍵開關供貨商。

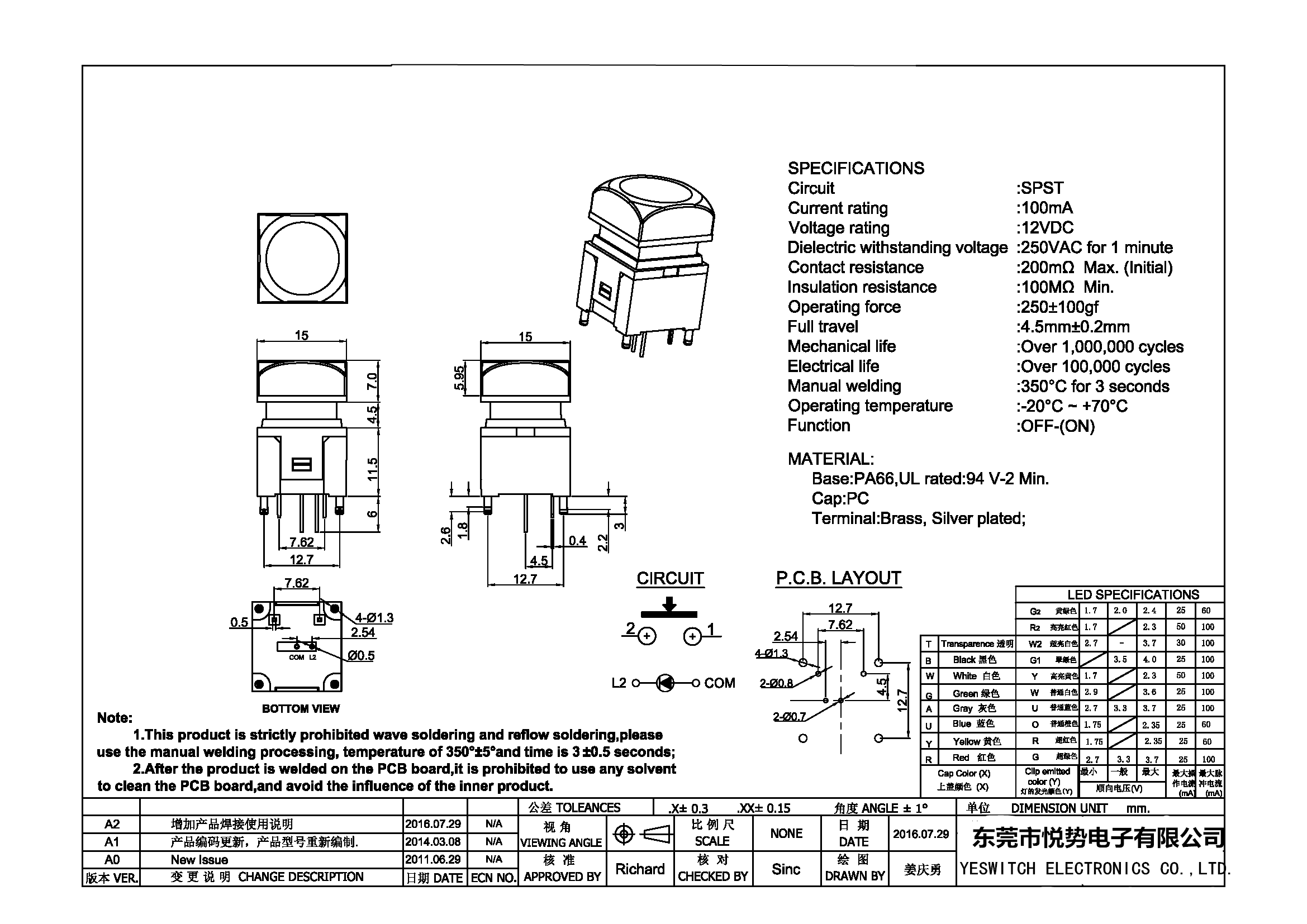

產品規格:
Circuit :SPST
Current rating :100mA
Voltage rating :12VDC
Dielectric withstanding voltage:250VAC for 1 minute
(between contacts)(between contacts &case)
Contact resistance :200mΩ Max.( Initial)
Insulation resistance :100MΩ Min.
Operating force :250±100gf
Full travel :4.5mm+0.2mm
Mechanical life :over 200000 cycles
Electrical life :Over 10000o0 cycles
Manual welding :350°C for 3 seconds
Operating temperature :-20°℃~+70℃
Function :OFF-(ON)
帶燈按鍵開關應用領域:
Video processor 視頻處理器
Security Monitoring Equipment安防監控設備
Teaching recording and broadcasting equipment教學錄播設備
Consumer Electronics消費類電子
Audio equipment 音響設備
帶燈按鍵開關，小型按鍵開關，雙色燈按鍵開關廠家，方形帶燈按鍵開關，三色燈按鍵開關，多色燈按鍵開關供貨商。
產品規格:
Circuit :SPST
Current rating :100mA
Voltage rating :12VDC
Dielectric withstanding voltage:250VAC for 1 minute
(between contacts)(between contacts &case)
Contact resistance :200mΩ Max.( Initial)
Insulation resistance :100MΩ Min.
Operating force :250±100gf
Full travel :4.5mm+0.2mm
Mechanical life :over 200000 cycles
Electrical life :Over 10000o0 cycles
Manual welding :350°C for 3 seconds
Operating temperature :-20°℃~+70℃
Function :OFF-(ON)
帶燈按鍵開關應用領域:
Video processor 視頻處理器
Security Monitoring Equipment安防監控設備
Teaching recording and broadcasting equipment教學錄播設備
Consumer Electronics消費類電子
Audio equipment 音響設備
