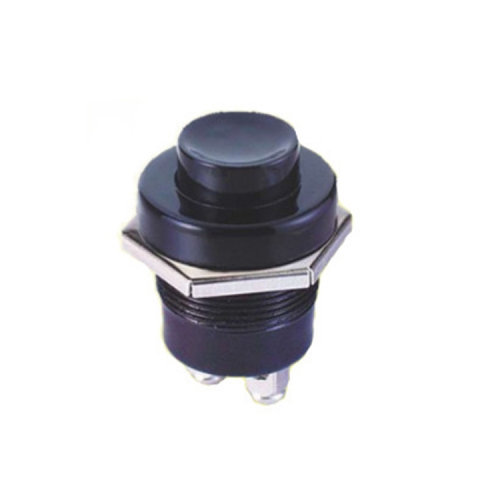

農用車輛防水按鍵開關
所屬分類：30mm金屬按鈕開關
- 點擊次數：
- 發布日期：2023/07/03
- 在線詢價
詳細介紹
汽車按鈕開關，汽車按鍵開關，IP67防水按鍵開關，汽車星空体育网址大全30mm Metal Pushbutton Switches
開關直徑：30mm
產品簡介：30係列汽車按鈕開關，通過高低溫測試；通過EMTEK防震動測試及TUV:IP67防水測試；

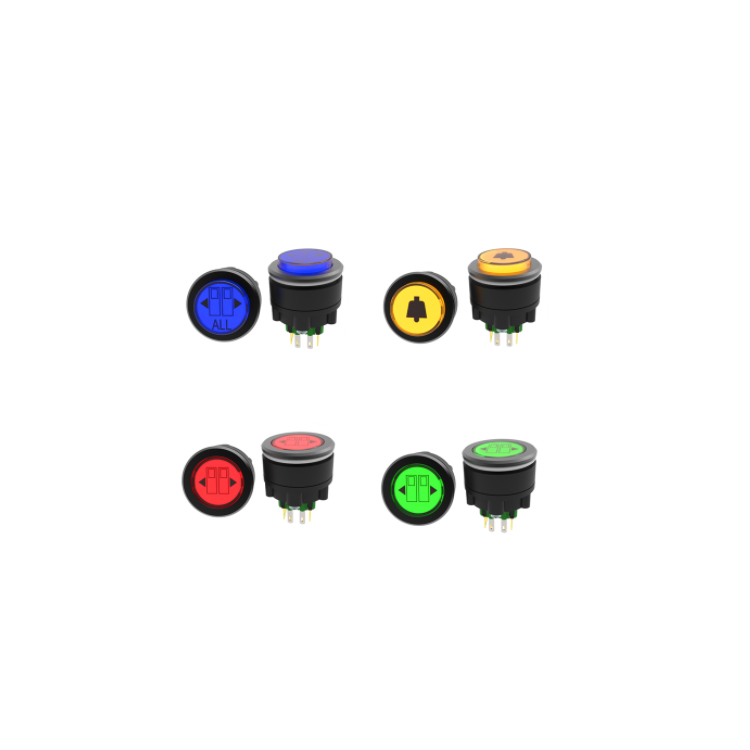

內置雙色/三色LED切換功能，根據要求印製各種圖案，並有防呆功能。
適用於特種車輛，農用車輛，民用工程車輛，卡車，挖掘機，起重機，準軍事工業等，歐規美規認證齊全。
SAFETY/QUALITY APPROVALS
TUV/CQC/CE/SGS/REACH/IP67/CTUVUS
SPECIFICATIONS
Panel Thickness: Ø30.20mm
Contact Rating: lth 5A/250VAC resistive load 3A/250VAC
Mechanical Life: Momentary 200,000 cycles Self-lock 100,000 cycles
Electrical Life: 50,000 make-and-break cycles at full load
Torque: 5~14Nm
Travel: About 3.2mm
Operation Pressure: 1Pole 2.5±1N / 2Poles 3.5±1N
Contact Resistance: 50 mΩ max. @1A 12VDC (initial value)
Insulation Resistance: 1000MΩ min.at 500VDC
Dielectric Strength: 2,000 Vrms @sea level.
Operating Temperature: -40°C to 85°C
Ingress Protection: IP67
汽車防水按鍵開關材質說明：
MATERIALS
BUSHING : Stainless Steel / Nickel plated brass / Aluminum alloy
BASE : PA66,
ACTUATOR : PC ;
INNER ASSEMBLY : POM / PA66.
SPRING : Spring steel.
SEALING : Sillicone.
O-Ring : Sillicone
TERMINAL : Brass,with silver or gold plated.
HEX NUT : Nickel plated brass
帶燈汽車開關燈壓選擇：
Led: 1.8V/3V/6V/12V/24V/36V/48V/110V/220V
ILLUMINATION BASE RATlNG：
Red， Yellow and Orange：20mA 1.8V;
Blue, Green and White：20mA 2.8V
Beads Color：R/U/G/Y/0/W/RGB
