IP68 防水船型開關16A
詳細介紹

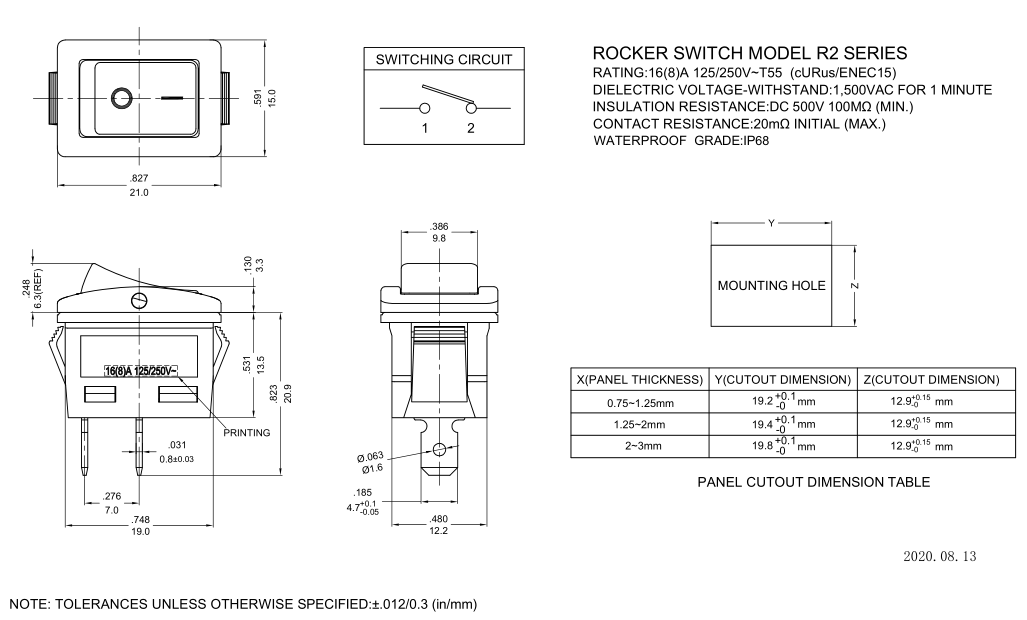

尺寸：21*15mm
防護等級：IP68防塵防水
電流：16A
IP68防塵防水翹板開關，室外專用防水船型開關，IP68防塵防水等級船型開關
The IP68 Rocker switch was unique aesthetic designed. With ON-OFF or ON-ON function and quick connect terminals. It is built in with optional neon lamp, DC LED Lamp upon request.
型號：IP68 series rocker switch is patented Standard Mini Rocker Switch with IP68 Protection. The rocker switch is approved to UL, CUL & ENEC, up to 16(8)A. The 13x19mm standard mini Rocker Switches with IP68 protection level.

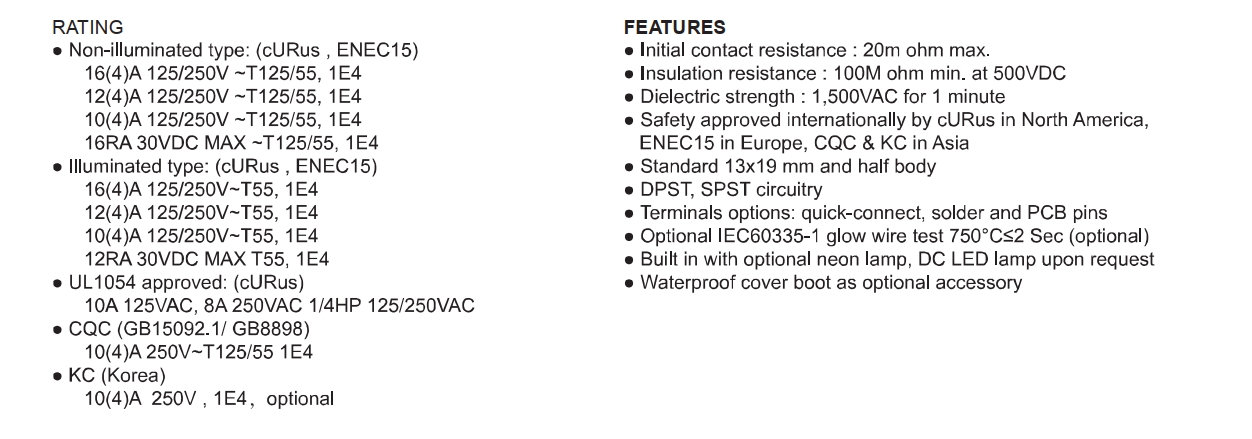

Specification:
· 10(4)A 125/250V~T55, (cURs,ENEC15)
· 16(8)A 125/250V~T55, (cURs,ENEC15)
· 16RA 30VDC T55 , IP68 (cURs,ENEC15)
· Initial contact resistance : 20m ohm (max.)
· Insulation resistance : 100M ohm (min,) at 500VDC
· Dielectric strength : 1,500VAC for 1 minute
· Electrical life : 10,000 cycles
· Switch for Class II appliances
· Base : Nylon 66, UL rated 94V-2 min
· Actuator : Nylon 66, UL rated 94V-2 min
· Spring : Piano wire
· Contact : Silver alloy
· Terminals: Silver plated Copper
