汽車防水翹板開關
詳細介紹

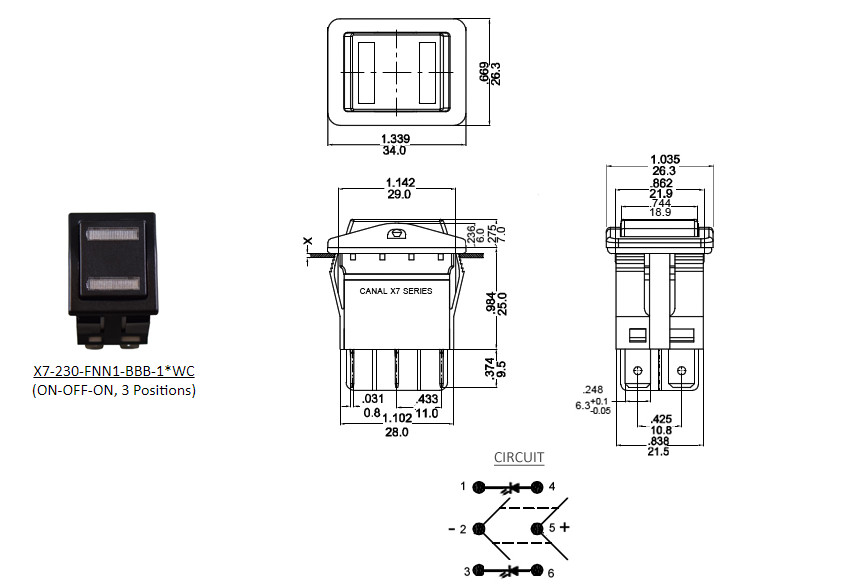

X7係列防水翹板開關(guan) ，2檔翹板開關(guan) ，3單防水翹板開關(guan) ，大電流船型開關(guan) ，雙色燈防水翹板開關(guan) ，大電流防水翹板開關(guan) ，汽車防水翹板開關(guan)

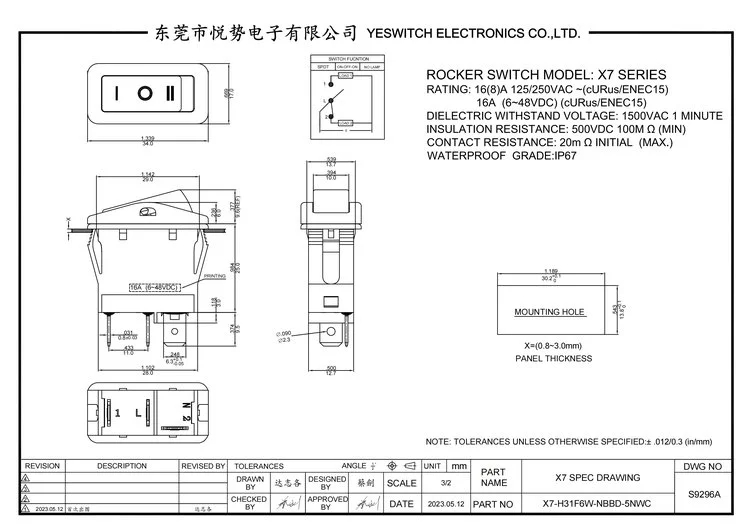

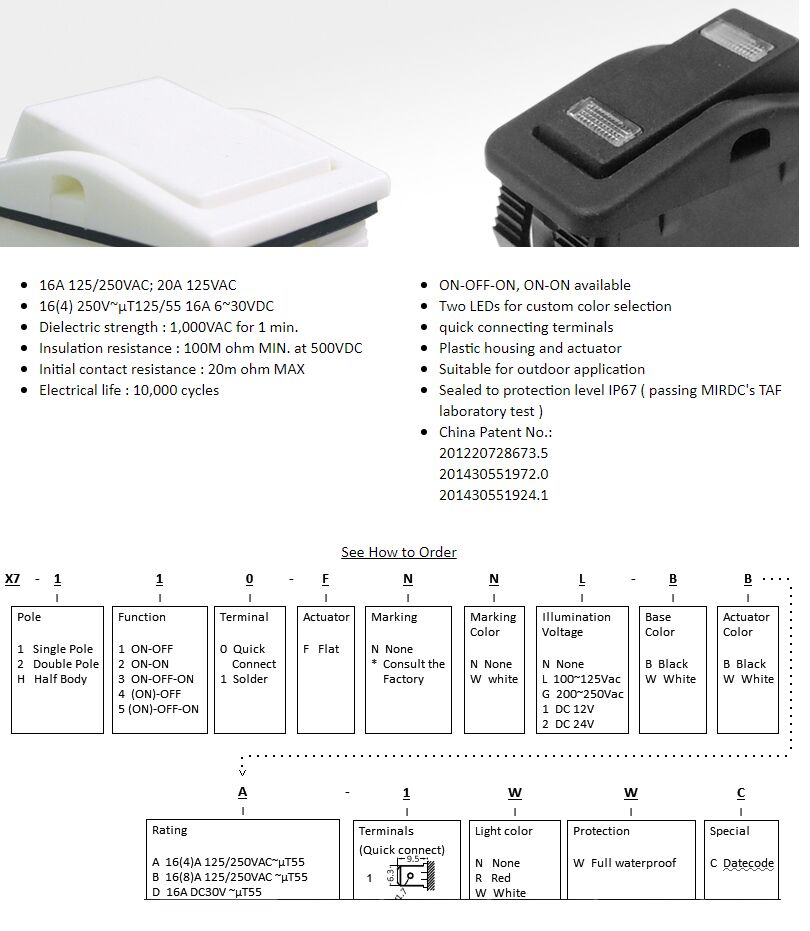

SPECIFICATIONS:
16, 20 or 25(8)A 125/250V~T55, IP67
16 or 20(8)A 125/250V~T125/55
Dielectric strength : 1,000VAC for 1 min.
Insulation resistance : 100M ohm MIN. at 500VDC
Initial contact resistance : 20m ohm MAX
Electrical life : 10,000 cycles
ON-OFF-ON, ON-ON, ON-OFF or other momentary functions available
Two LEDs for custom color selection
quick connecting terminals
Plastic housing and actuator
Suitable for outdoor application
Sealed to protection level IP67 ( passing MIRDC's TAF laboratory test )
