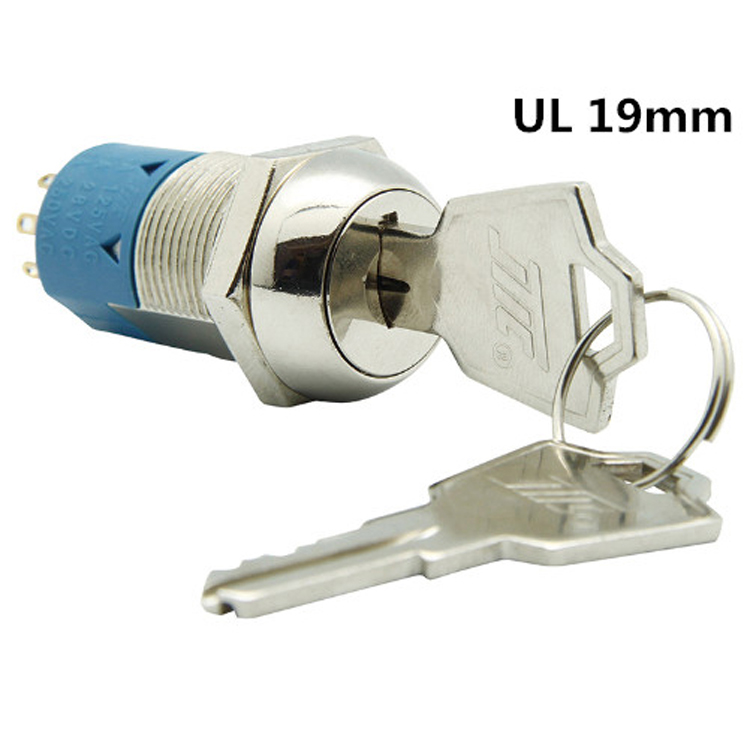

19mm電子鎖,電源開關鎖
詳細介紹
Introduction
No. S2071
Product Name S2071
Description
Zinc alloy die cast housing and cylinder.
Bright nickel plated standard.
5 disc tumbler mechanism.
Brass keys, nickel plated.
Golden plated contacts and terminals.
Hex nut or speed clip mounted.
SPECIFICATION
Contact Rating: 4A 125VAC, 2A 250VAC. 4A 28VDC
Contact Resistance: 50Milli-Ohms Max.
Insulation Resistance: 500 Meg-Ohms Min. (500VDC)
Dielectric Strength: 1000 VAC -1 Minute.
19mm鑰匙開關，19mm電子鎖,電源開關鎖,8腳鑰匙開關，SPDT鑰匙開關
No. S2071
Product Name S2071
Description
Zinc alloy die cast housing and cylinder.
Bright nickel plated standard.
5 disc tumbler mechanism.
Brass keys, nickel plated.
Golden plated contacts and terminals.
Hex nut or speed clip mounted.
SPECIFICATION
Contact Rating: 4A 125VAC, 2A 250VAC. 4A 28VDC
Contact Resistance: 50Milli-Ohms Max.
Insulation Resistance: 500 Meg-Ohms Min. (500VDC)
Dielectric Strength: 1000 VAC -1 Minute.
