電源鎖開關,配兩把鑰匙
詳細介紹

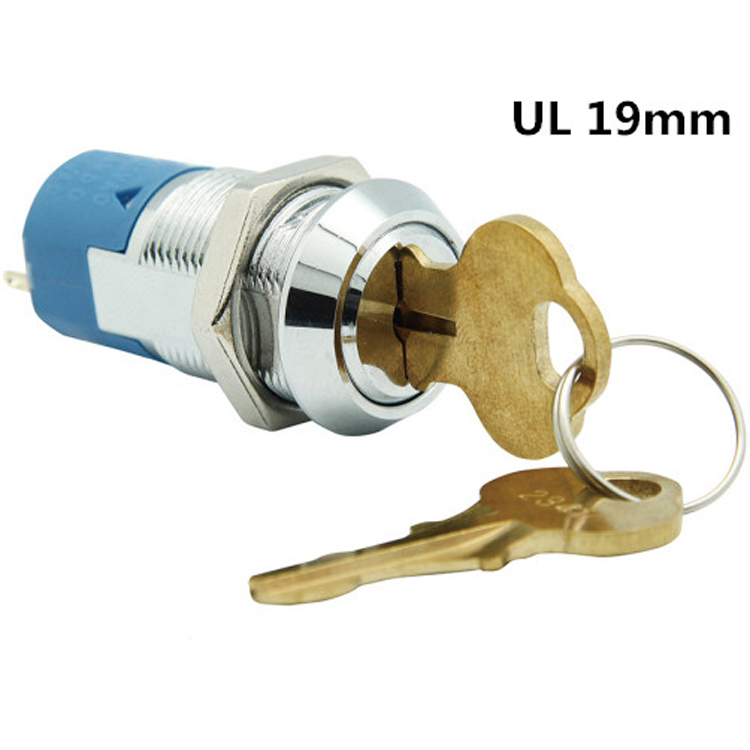

19mm鑰匙開關 4A鑰匙開關，DC電壓鑰匙開關
Introduction
No. S2031
Product Name S2031
Description
Zinc alloy die cast housing and cylinder.
Bright chrome plated standard.
Double-bitted brass keys
11 disc tumbler mechanism.
Golden plated contacts and terminals.
Hex nut or speed clip mounted.
SPECIFICATION
Contact Rating: 4A 125VAC, 2A 250VAC. 4A 28VDC
Contact Resistance: 50Milli-Ohms Max.
Insulation Resistance: 500 Meg-Ohms Min. (500VDC)
Dielectric Strength: 1000 VAC -1 Minute.
