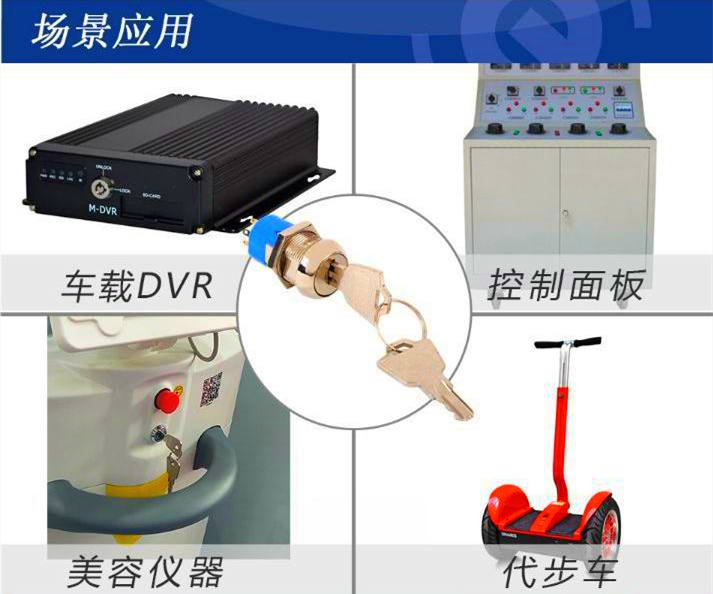

車載DVR鑰匙開關
詳細介紹

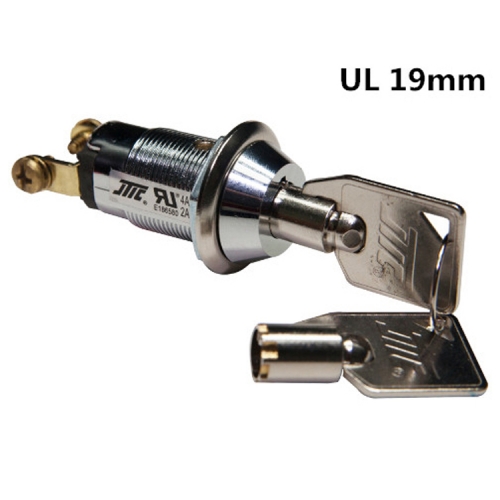

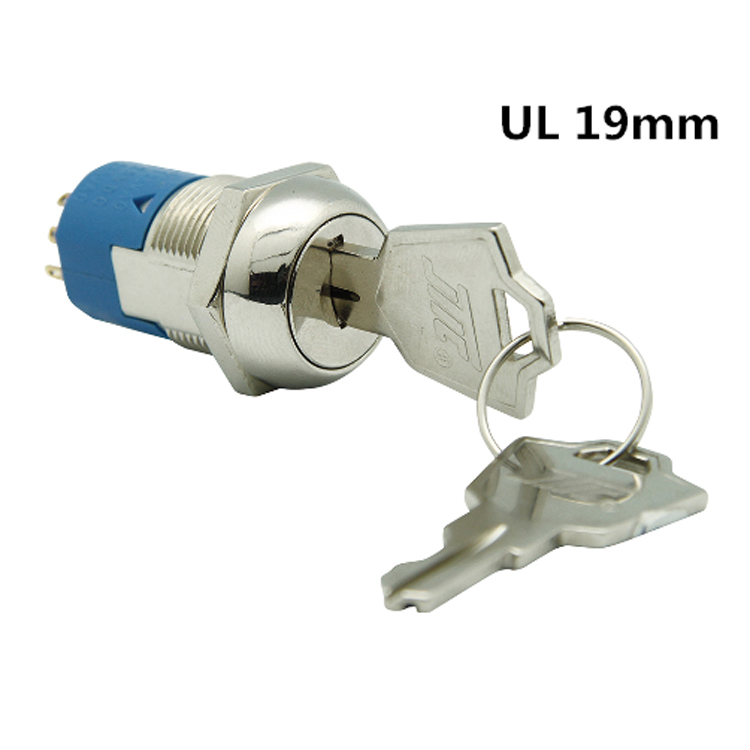

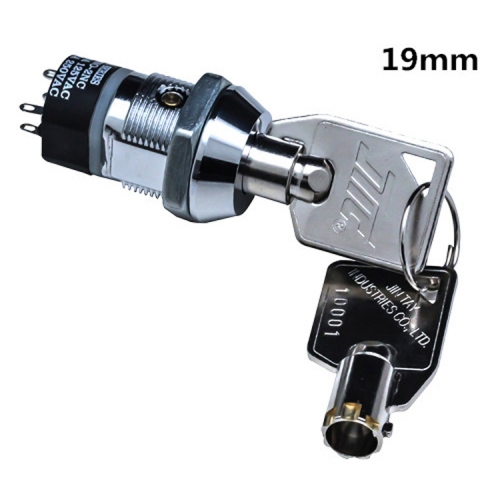

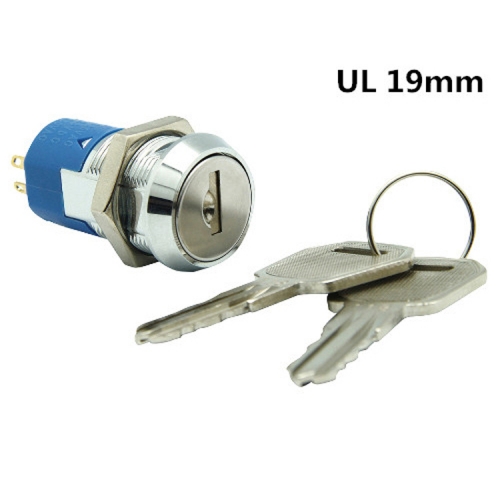

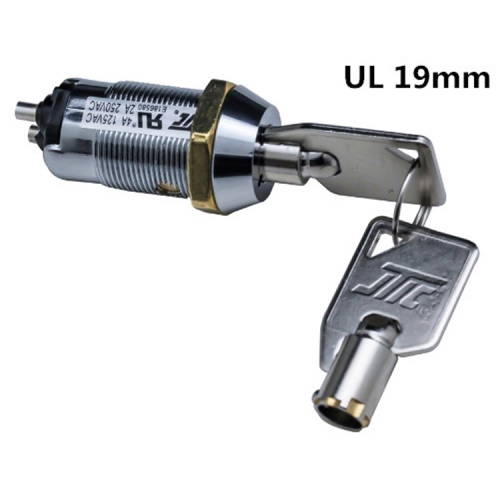

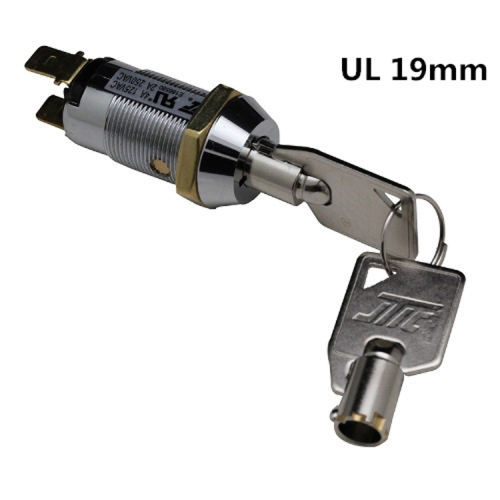

19mmUL認證鑰匙開關，出口歐美國家鑰匙開關Introduction
No. S2012
Product Name S2012
Description
Zinc alloy die cast housing and cylinder.
Bright nickel plated standard.
4 disc tumbler mechanism.
Brass keys, nickel plated.
Spring loaded for momentary contact.
Golden plated contacts and terminals.
Hex nut or speed clip mounted.
SPECIFICATION
Contact Rating: 4A 125VAC, 2A 250VAC. 4A 28VDC
Contact Resistance: 50Milli-Ohms Max.
Insulation Resistance: 500 Meg-Ohms Min. (500VDC)
Dielectric Strength: 1000 VAC -1 Minute.
No. S2012
Product Name S2012
Description
Zinc alloy die cast housing and cylinder.
Bright nickel plated standard.
4 disc tumbler mechanism.
Brass keys, nickel plated.
Spring loaded for momentary contact.
Golden plated contacts and terminals.
Hex nut or speed clip mounted.
SPECIFICATION
Contact Rating: 4A 125VAC, 2A 250VAC. 4A 28VDC
Contact Resistance: 50Milli-Ohms Max.
Insulation Resistance: 500 Meg-Ohms Min. (500VDC)
Dielectric Strength: 1000 VAC -1 Minute.
