KEYLOCK SWITCH直徑19mm鑰匙鎖
詳細介紹
產品型號：S2123 S2123A

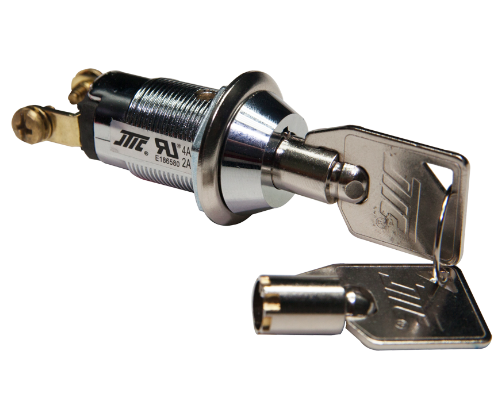

產品名稱：LARGE FULL ZIZE TUBULAR SWITCH LOCK
產品說明：
鋅合金鎖殼，鎖心，亮鉻電鍍
7個珠子
鐵製銅管鑰匙，鍍鎳
鑰匙可單抽或者雙抽
鍍銀接點及端子
S2123 2支端子，通電方式OFF-ON
S2123A 2支端子，通電方式OFF-(ON)，鑰匙為反彈式
鎖頭固定方式為六角螺母
規格品為同號或每100PCS作1組鑰匙組合
最多有10000組鑰匙組合
此款產品已經通過UL認證
Introduction

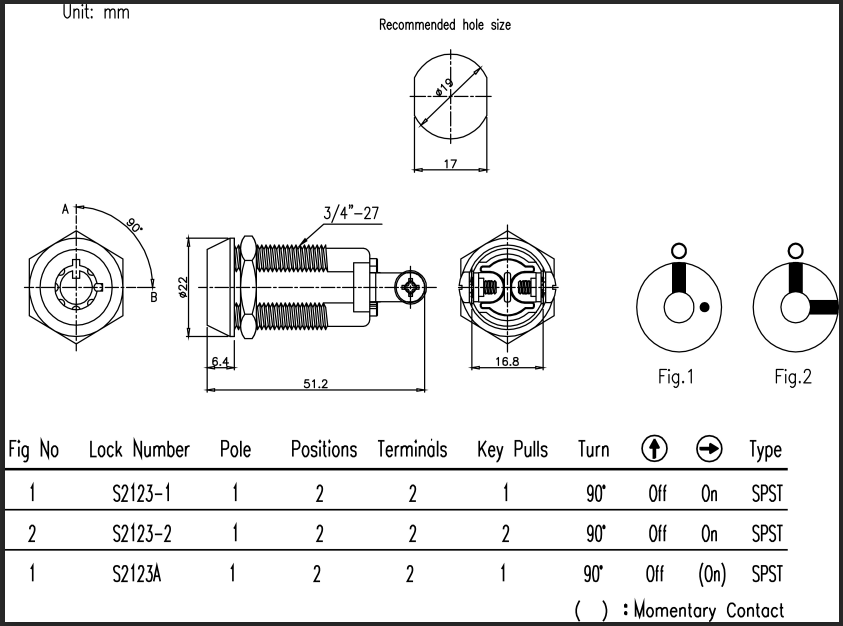

No. S2123 S2123A
Product Name S2123 S2123A
Description
Zinc alloy die cast housing and cylinder.
Bright chrome plated standard.
7 pin tumbler mechanism.
Steel made tubular keys, nickel plated.
Silver plated contacts and terminals.
S2123 2 position off-on 2 spade terminals,
S2123A 2 position off-(on) 2 spade terminals, spring loaded for momentary contact.
Hex nut mounted.
SPECIFICATION
Contact Rating: 4A 125VAC, 2A 250VAC.
Contact resistance: 50Milli - Ohms Max.
Insulation Resistance: 500 Meg - Ohms Min. (500VDC)
Dielectric Strength: 1500VAC - 1 Minute.
19mm 鑰匙開關，UL CERTIFIED SWITCH LOCKS
產品名稱：LARGE FULL ZIZE TUBULAR SWITCH LOCK
產品說明：
鋅合金鎖殼，鎖心，亮鉻電鍍
7個珠子
鐵製銅管鑰匙，鍍鎳
鑰匙可單抽或者雙抽
鍍銀接點及端子
S2123 2支端子，通電方式OFF-ON
S2123A 2支端子，通電方式OFF-(ON)，鑰匙為反彈式
鎖頭固定方式為六角螺母
規格品為同號或每100PCS作1組鑰匙組合
最多有10000組鑰匙組合
此款產品已經通過UL認證
Introduction
No. S2123 S2123A
Product Name S2123 S2123A
Description
Zinc alloy die cast housing and cylinder.
Bright chrome plated standard.
7 pin tumbler mechanism.
Steel made tubular keys, nickel plated.
Silver plated contacts and terminals.
S2123 2 position off-on 2 spade terminals,
S2123A 2 position off-(on) 2 spade terminals, spring loaded for momentary contact.
Hex nut mounted.
SPECIFICATION
Contact Rating: 4A 125VAC, 2A 250VAC.
Contact resistance: 50Milli - Ohms Max.
Insulation Resistance: 500 Meg - Ohms Min. (500VDC)
Dielectric Strength: 1500VAC - 1 Minute.
