SPDT兩檔電源鎖,鑰匙鎖
詳細介紹

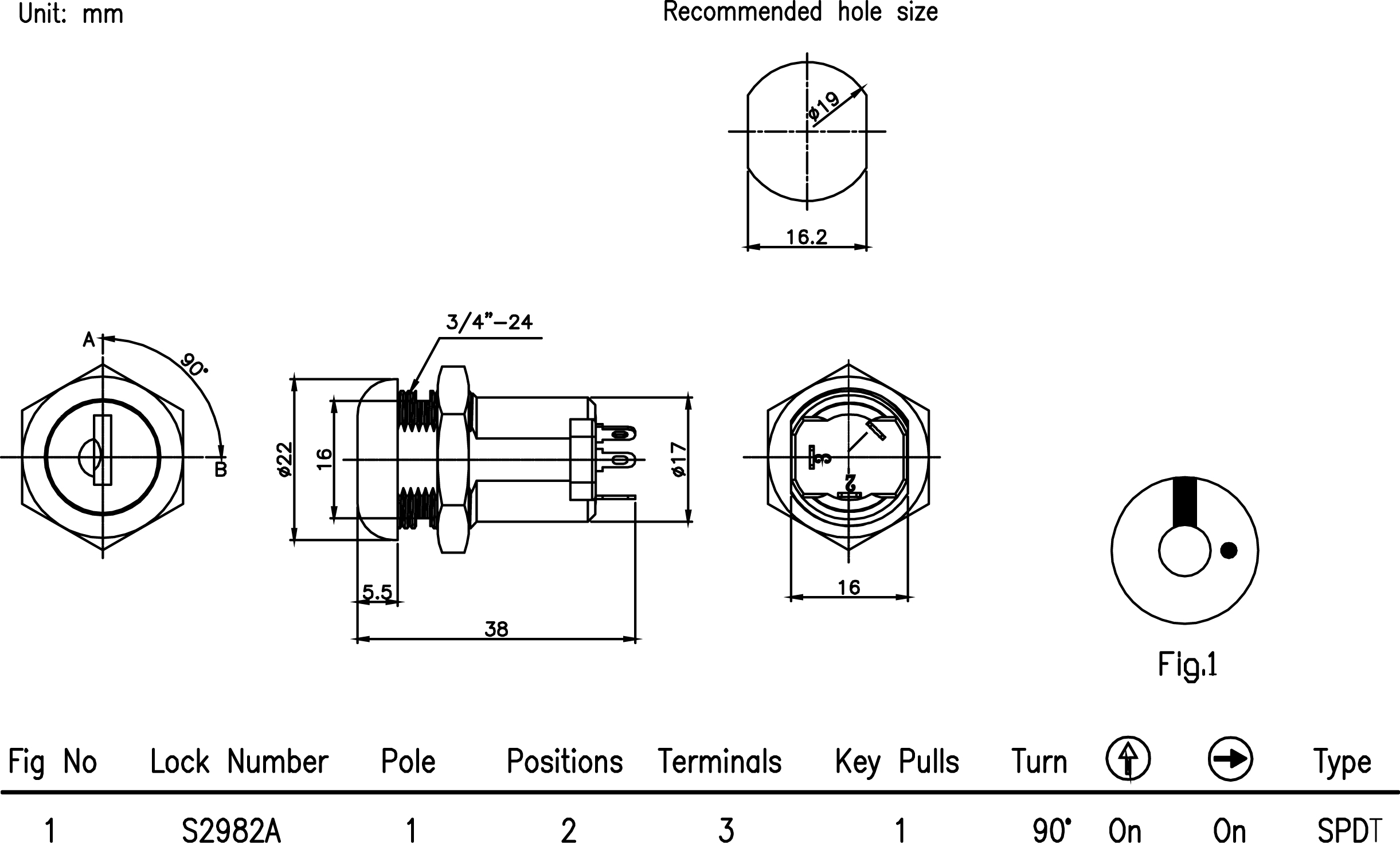

No. S2982A
Product Name S2982A
Description
Zinc alloy die cast housing and cylinder.
Bright nickel plated standard.
4 disc tumbler mechanism.
Reversible double-bitted brass keys, nickel plated.
Anti-concussion function.
Silver plated contacts and brass terminals.
2 position (on-on) 3 terminals.
Hex nut or speed clip mounted.
SPECIFICATION
Contact Rating: 3A 125VAC, 2A 250VAC.
Contact Resistance: 50Milli-Ohms Max.
Insulation Resistance: 200 Meg-Ohms Min. (500VDC)
Dielectric Strength: 1000 VAC -1 Minute.
