複位功能鑰匙開關
詳細介紹
19mm鑰匙開關，4A鑰匙開關，大電流鑰匙開關，複位功能鑰匙開關

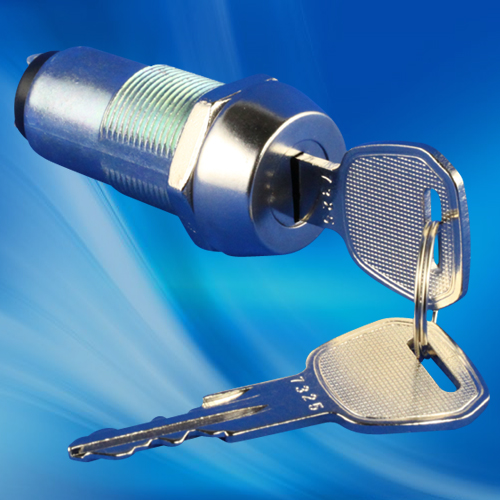

產品型號：S246 S246M
產品名稱：KEYLOCK SWITCH
產品說明：
鋅合金鎖殼，鎖心，三價鋅電鍍
鎖殼包白鐵蓋，附防塵塊
5個排片
雙邊銑齒銅鑰匙，鍍鎳
鑰匙可單抽或者雙抽
鍍銀接點及端子
S246 2檔 通電方式 off-on 2支端子.
S246M 2檔 通電方式 off-(on) 2支端子 鑰匙為反彈式。
鎖頭固定方式為六角螺母
規格品為同號或25組鑰匙組合
最多有100組鑰匙組合
Introduction

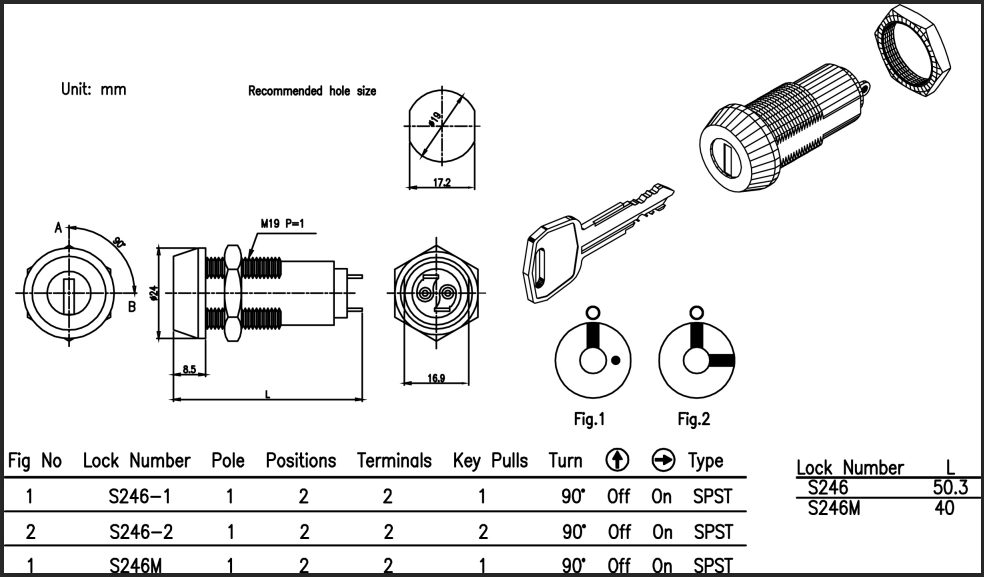

No. S246 S246M
Product Name S246 S246M
Description
Zinc alloy die cast housing and cylinder.
Bright chrome plated standard.
Stainless steel capped bezel with dust shutter mechanism.
5 disc tumbler mechanism.
Reversible double-bitted brass keys, nickel plated.
Silver plated contacts and terminals.
S246 2 position off-on 2 terminals.
S246M 2 position off-(on) 2 terminals, spring loaded for momentary contact.
Hex nut mounted.
SPECIFICATION
Contact Rating: 4A 125VAC, 2A 250VAC
Contact Resistance: 10 Milli-Ohms Max.
Insulation Resistance: 500 Meg-Ohms Min. (500VDC)
Dielectric Strength: 1000 VAC - 1 Minute.
