帶燈五向導航按鍵開關
詳細介紹

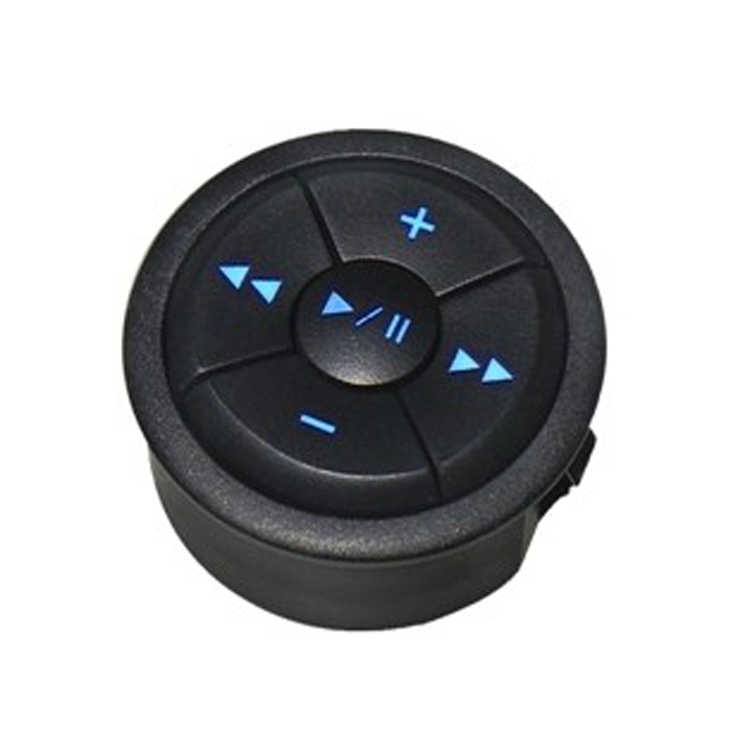

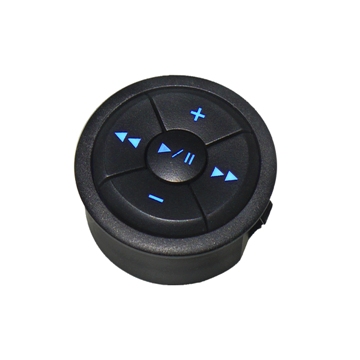

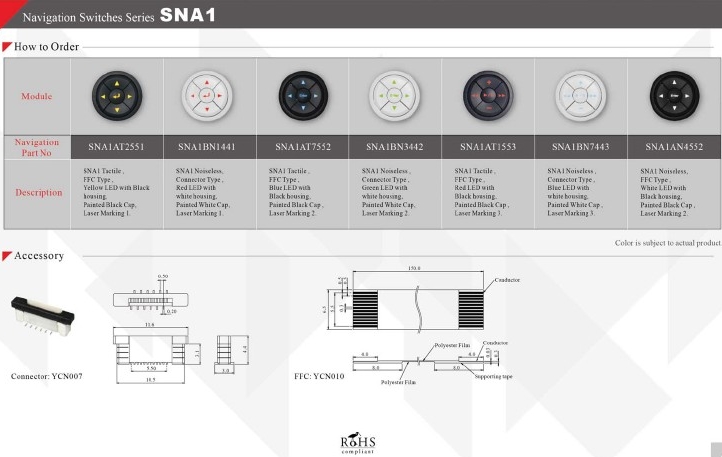

五向導航開關(guan) ，NEW~ Navi switch, 5-way switch, Navigation Switch module Series SNA1
We provide Laser Marking service

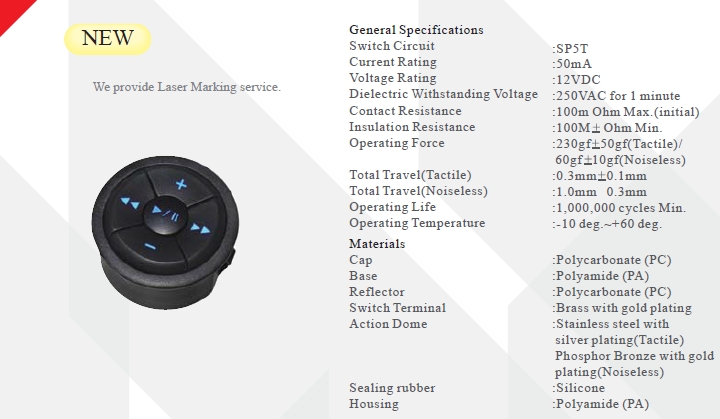

Switch rating:50mA,12VDC
Contact Resistance:100m Ohm Max.(initial)

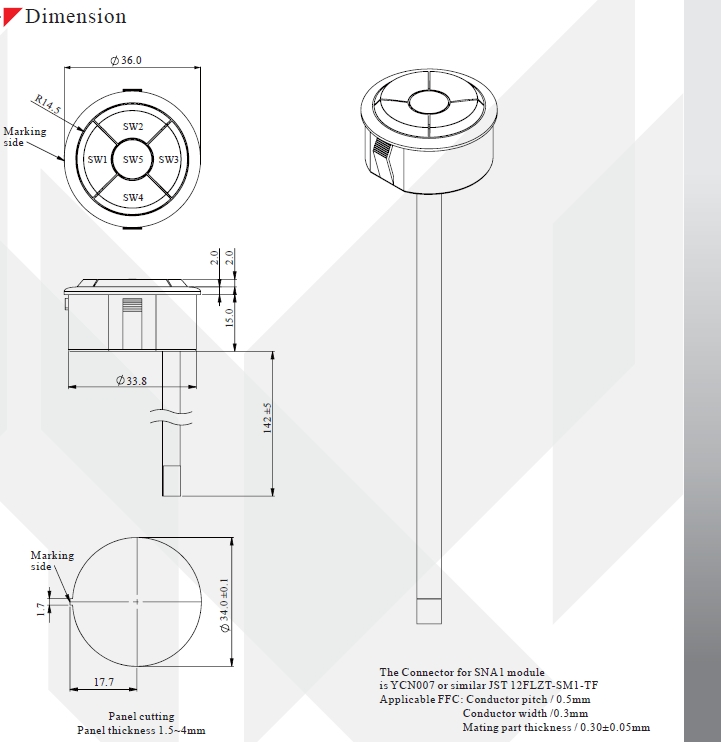

Silent/mute or tactile feeling. Panel mount snap-in type recommend panel cutting dimension 34mm only suit for 1U rack.

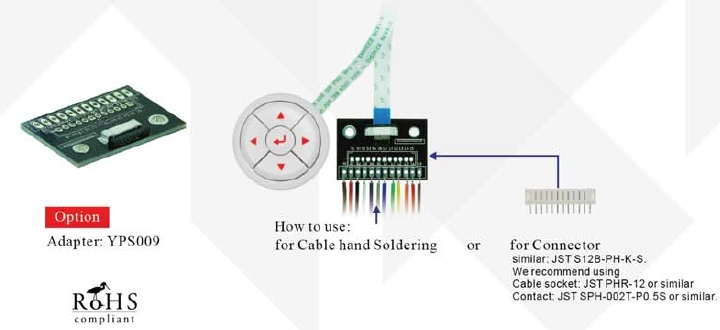

through FFC(Flexible Flat Cable) easy connect to your main board.

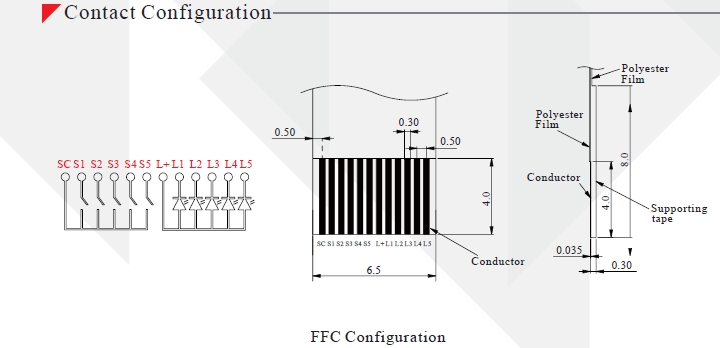

total 12 pins it with commond anode for LED it make you easy to control individual LED.
新產(chan) 品~ SNA1 五向鍵、方向鍵、導航鍵，按鈕開關(guan) 模組
可提供客製雷射雕刻服務
開關(guan) 額定電流電壓:50mA,12VDC
34mm麵版安裝孔徑，適合1U機架型麵版安裝。
輕觸或滑順觸感可供選擇。
FFC軟性排線以連接器與(yu) PCB控製板快速連接。
內(nei) 建LED背光可獨立控製。
