銅本色鑰匙電源鎖
詳細介紹
產品型號：S203A S203AM
產品名稱：LARGE FULL SIZE FLAT SWITCH LOCK
產品說明：
鋅合金鎖殼，鎖心，亮鉻電鍍
11個排片
雙邊銑齒銅鑰匙，銅本色
鑰匙可單抽或者雙抽
鍍銀接點及端子
S203A 2支螺絲端子，通電方式OFF-ON
S203AM 2支螺絲端子，通電方式OFF-（ON），鑰匙為反彈式
鎖頭固定方式為六角螺母
規格品為同號或5組鑰匙組合
最多有5組鑰匙組合
此款產品已經通過UL認證
Introduction

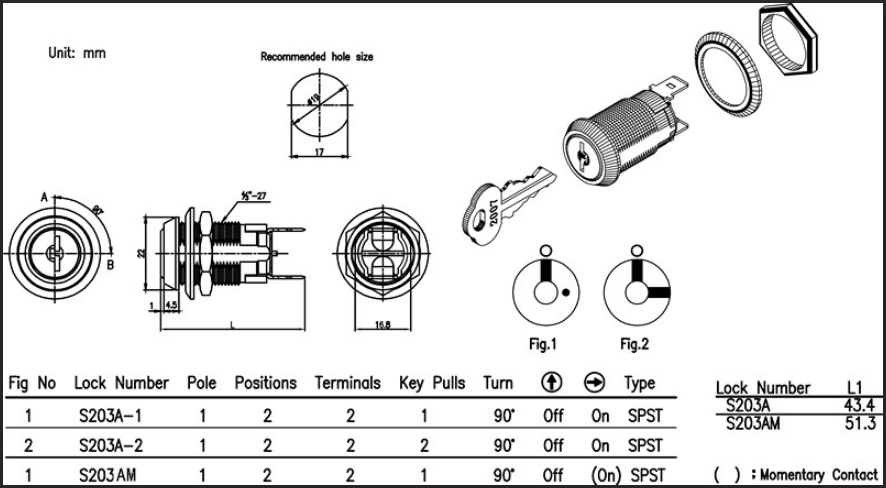

No. S203A S203AM
Product Name S203 S203M
Description
Zinc alloy die cast housing and cylinder.
Bright chrome plated standard.
11 disc tumbler mechanism.
Double-bitted brass keys
S203A 2 position off-on 2 screw terminals.
S203AM 2 position off-（on） 2 screw terminals, spring loaded for momentary contact.
Hex nut mounted.
SPECIFICATION
Contact Rating: 4A 125VAC, 2A 250VAC.
Contact Resistance: 50Milli-Ohms Max.
Insulation Resistance: 500 Meg-Ohms Min. (500VDC)
Dielectric Strength: 1500 VAC -1 Minute.
