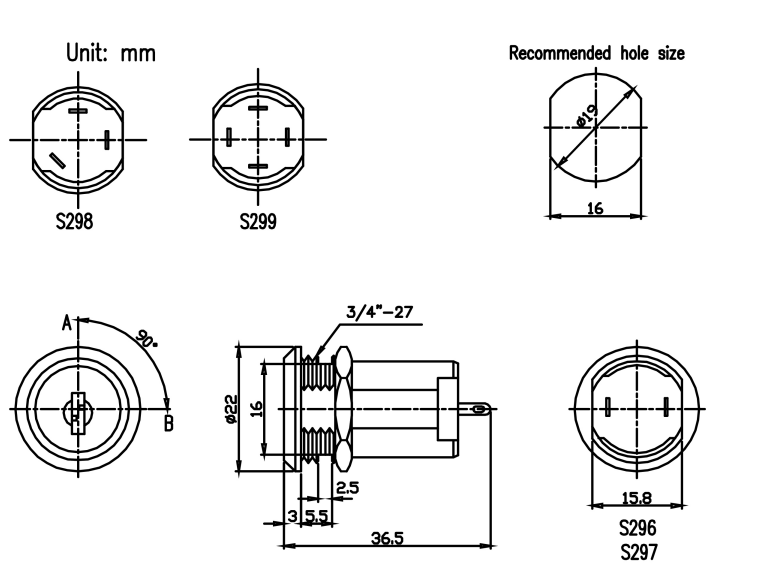

開孔尺寸19mm鑰匙開關
詳細介紹

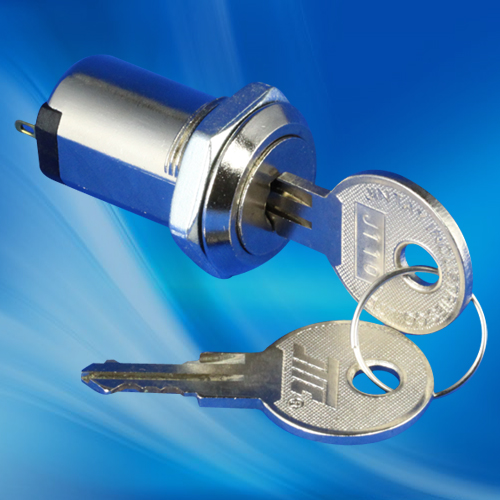

19mm鑰匙開關，19mm鑰匙鎖，電源鎖
產品型號：S296 S297 S298 S299
產品名稱：KEYLOCK SWITCH
產品說明：
鋅合金鎖殼，鎖心，吊鎳電鍍
4個排片
雙邊銑齒銅鑰匙，鍍鎳
鑰匙可單抽或雙抽
鍍銀接點及端子

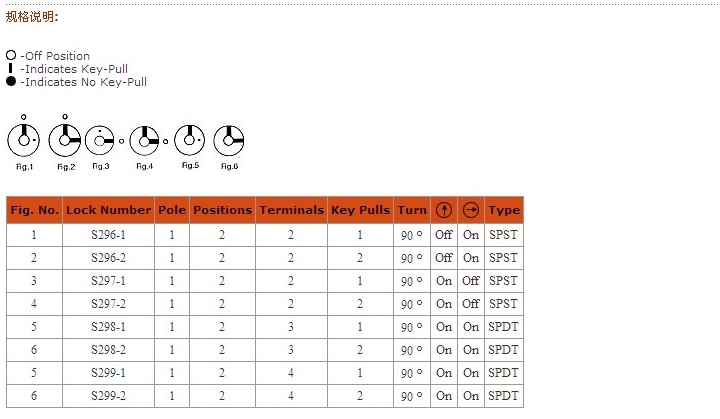

S296 2支端子，通電方式OFF-ON
S297 2支端子，通電方式ON-OFF
S298 3支端子，通電方式ON-ON
S299 4支端子，通電方式ON-ON
鎖頭固定方式為六角螺母或插片
規格品為同號或25組鑰匙組合
最多有25組鑰匙組合
Introduction
No. S296 S297 S298 S299
Product Name S296 S297 S298 S299
Description
Zinc alloy die cast housing and cylinder.
Bright nickel plated standard.
4 disc tumbler mechanism.
Reversible double-bitted brass keys, nickel plated.
Silver plated contacts and brass terminals.
S296 2 position (off-on) 2 terminals.
S297 2 position (on-off) 2 terminals.
S298 2 position (on-on) 3 terminals.
S299 2 position (on-on) 4 terminals.
Hex nut or speed clip mounted.
SPECIFICATION
Contact Rating: 4A 125VAC, 2A 250VAC.
Contact Resistance: 50Milli-Ohms Max.
Insulation Resistance: 200 Meg-Ohms Min. (500VDC)
Dielectric Strength: 1000 VAC -1 Minute.
19mm鑰匙開關，19mm鑰匙鎖，電源鎖
產品型號：S296 S297 S298 S299
產品名稱：KEYLOCK SWITCH
產品說明：
鋅合金鎖殼，鎖心，吊鎳電鍍
4個排片
雙邊銑齒銅鑰匙，鍍鎳
鑰匙可單抽或雙抽
鍍銀接點及端子
S296 2支端子，通電方式OFF-ON
S297 2支端子，通電方式ON-OFF
S298 3支端子，通電方式ON-ON
S299 4支端子，通電方式ON-ON
鎖頭固定方式為六角螺母或插片
規格品為同號或25組鑰匙組合
最多有25組鑰匙組合
Introduction
No. S296 S297 S298 S299
Product Name S296 S297 S298 S299
Description
Zinc alloy die cast housing and cylinder.
Bright nickel plated standard.
4 disc tumbler mechanism.
Reversible double-bitted brass keys, nickel plated.
Silver plated contacts and brass terminals.
S296 2 position (off-on) 2 terminals.
S297 2 position (on-off) 2 terminals.
S298 2 position (on-on) 3 terminals.
S299 2 position (on-on) 4 terminals.
Hex nut or speed clip mounted.
All keyed alike or 25 combinations standard
25 combinations available
SPECIFICATION
Contact Rating: 4A 125VAC, 2A 250VAC.
Contact Resistance: 50Milli-Ohms Max.
Insulation Resistance: 200 Meg-Ohms Min. (500VDC)
Dielectric Strength: 1000 VAC -1 Minute.
