鑰匙開關現貨,雙抽鑰匙開關
詳細介紹

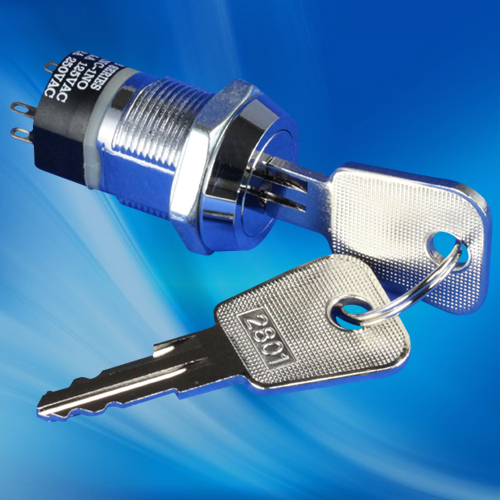

產品型號：S286A S286B
產品名稱：KEYLOCK SWITCH
產品說明：
鋅合金鎖殼，鎖心，亮鉻電鍍
5個排片
雙邊銑齒銅鑰匙，鍍鎳
鑰匙可單抽或者雙抽
鍍銀接點及端子
S286A 4支端子，通電方式ON-ON（2NO 2NC）
S286B 4支端子，通電方式ON-ON（1NO 1NC）
鎖頭固定方式為六角螺母
規格品為同號或25PCS組鑰匙組合
最多有150組鑰匙組合
Introduction

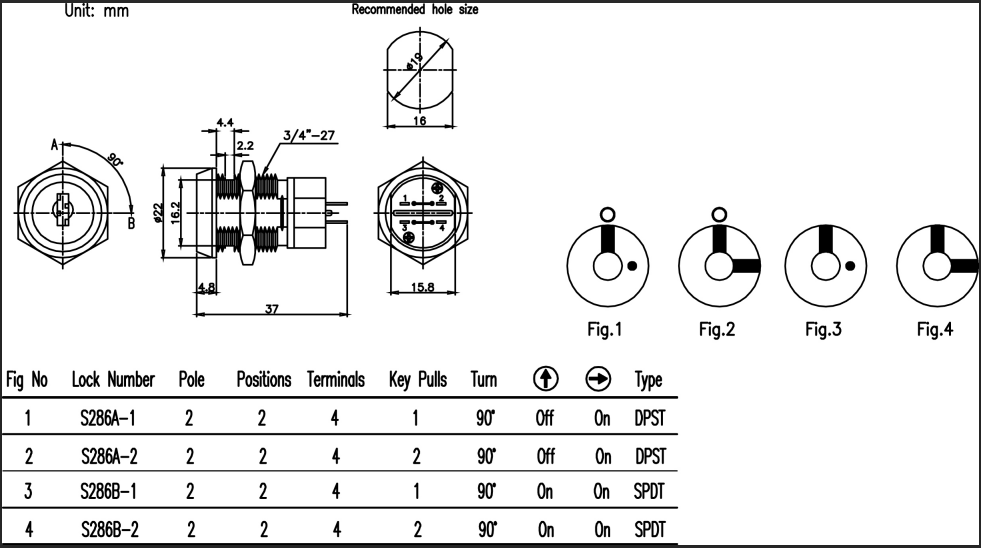

No. S286A S286B
Product Name S286A S286B
Description
Zinc alloy die cast housing and cylinder.
Bright chrome plated standard.
5 disc tumbler mechanism.
Reversible double-bitted brass keys, nickel plated.
Silver plated contacts and terminals.
S286A 2 position (off-on) 4 terminals. (2NO 2NC)
S286B 2 position (on-on) 4 terminals. (1NO 1NO)
Hex nut or speed clip mounted
