S2011兩檔UL鑰匙開關
詳細介紹
商品介紹

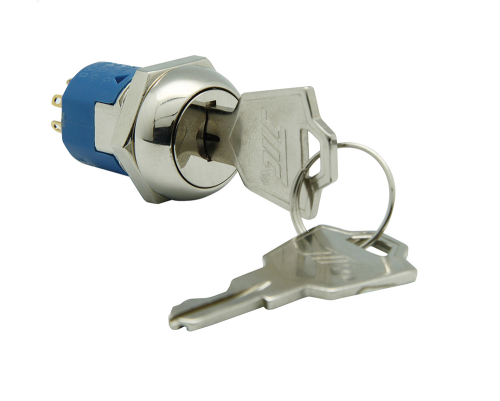

產品名稱 UL電源鎖
產品型號 S2011
產品說明：
. 鋅合金鎖殼, 鎖心, 吊鎳電鍍
. 4個排片
. 雙邊銑齒銅鑰匙, 鍍鎳
. 鑰匙抽出位置多種
. 鍍金接點及端子

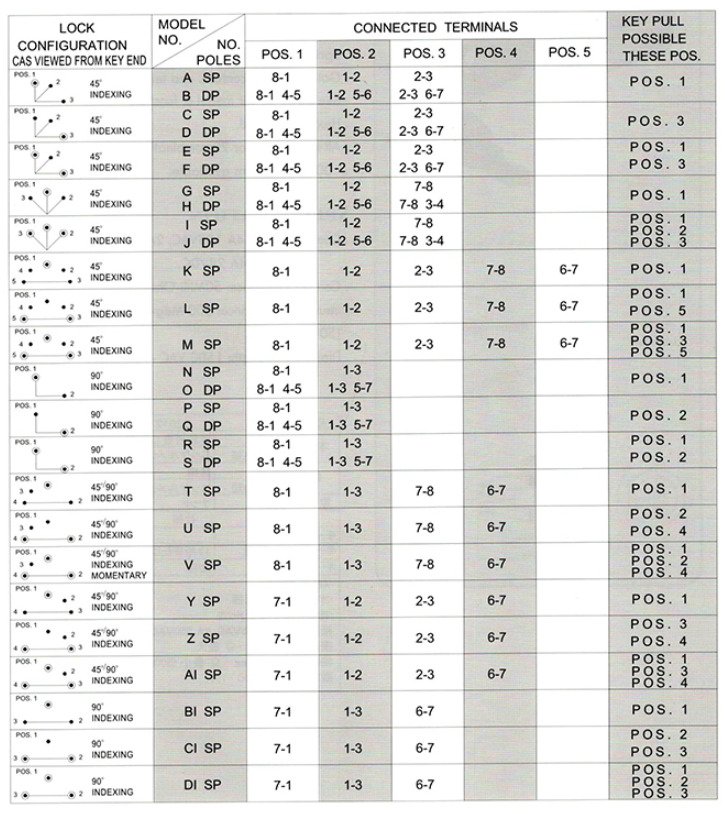

. 通電方式參考附件
. 鎖頭固定方式為六角螺母或插片
. 規格品為同號或20組鑰匙組合
. 最多有20組鑰匙組合
. UL認證
Introduction
No. S2011
Product Name S2011
Description
S2011 series
Zinc alloy die cast housing and cylinder.
Bright nickel plated standard.
4 disc tumbler mechanism.
Brass keys, nickel plated.
Various key withdrawals available.
Golden plated contacts and terminals.
Hex nut or speed clip mounted.
SPECIFICATION
Contact Rating: 4A 125VAC, 2A 250VAC. 4A 28VDC
Contact Resistance: 50Milli-Ohms Max.
Insulation Resistance: 500 Meg-Ohms Min. (500VDC)
Dielectric Strength: 1000 VAC -1 Minute.
19mm鑰匙開關 UL電源鎖
產品名稱 UL電源鎖
產品型號 S2011
產品說明：
. 鋅合金鎖殼, 鎖心, 吊鎳電鍍
. 4個排片
. 雙邊銑齒銅鑰匙, 鍍鎳
. 鑰匙抽出位置多種
. 鍍金接點及端子
. 通電方式參考附件
. 鎖頭固定方式為六角螺母或插片
. 規格品為同號或20組鑰匙組合
. 最多有20組鑰匙組合
. UL認證
Introduction
No. S2011
Product Name S2011
Description
S2011 series
Zinc alloy die cast housing and cylinder.
Bright nickel plated standard.
4 disc tumbler mechanism.
Brass keys, nickel plated.
Various key withdrawals available.
Golden plated contacts and terminals.
Hex nut or speed clip mounted.
SPECIFICATION
Contact Rating: 4A 125VAC, 2A 250VAC. 4A 28VDC
Contact Resistance: 50Milli-Ohms Max.
Insulation Resistance: 500 Meg-Ohms Min. (500VDC)
Dielectric Strength: 1000 VAC -1 Minute.
