雙回路電源鎖，圓口鑰匙電源鎖
詳細介紹

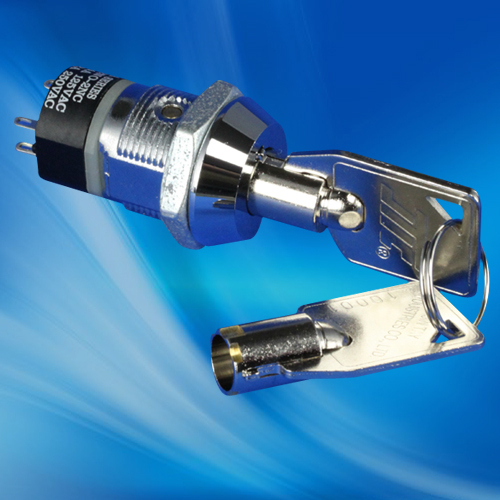

產品名稱：KEYLOCK SWITCH
產品說明：
鋅合金鎖殼，鎖心，亮鉻電鍍
7個珠子
鐵製銅管鑰匙，鍍鎳
鑰匙可單抽或者雙抽
鍍銀接點及端子
S206A 4支端子，通電方式OFF-ON(2NO 2NC)
S206B 4支端子，通電方式ON-ON(1NO 1NC)
鎖頭固定方式為六角螺母或者插片
規格品為同號或每100PCS作1組鑰匙組合
最多有10000組鑰匙組合
Introduction

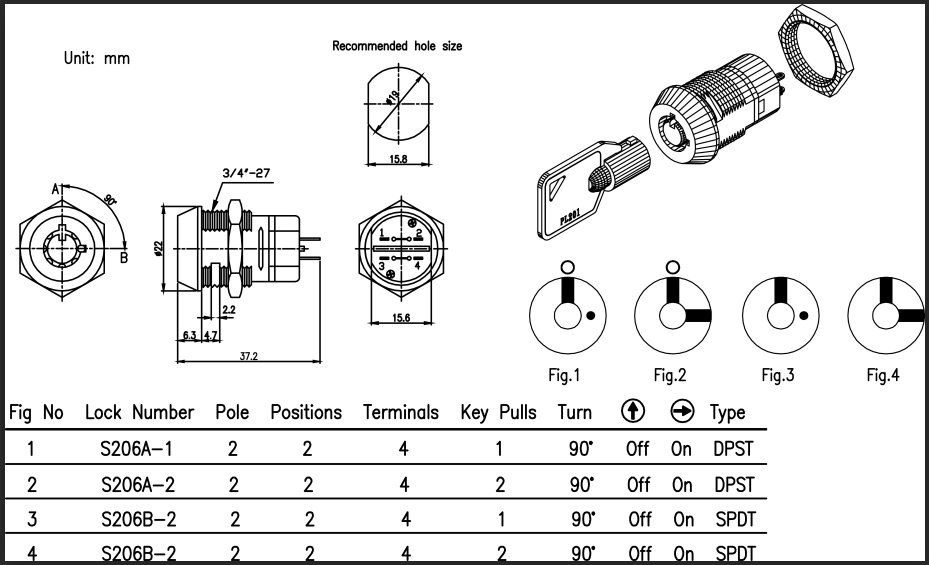

No. S206A S206B
Product Name S206A S206B
Description
Zinc alloy die cast housing and cylinder.
Bright chrome plated standard.
7 pin tumbler mechanism.
Steel made tubular keys, nickel plated.
Silver plated contacts and terminals.
S206A 2 position (off-on) 4 terminals. (2NO 2NC)
S206B 2 position (on-on) 4 terminals. (1NO 1NO)
Hex nut or speed clip mounted.
