反彈功能鑰匙開關
詳細介紹

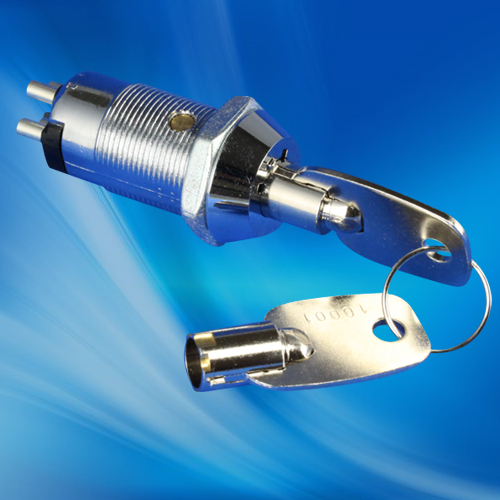

19mm鑰匙開關，可回彈鑰匙開關，三擋鑰匙開關
Introduction
19mm鑰匙開關，可回彈鑰匙開關，三擋鑰匙開關
產品型號：S202ZC S202ZD S202ZDA
產品名稱：KEYLOCK SWITCH
產品說明：
鋅合金鎖殼，鎖心，亮鉻電鍍
7個珠子
鐵製銅管鑰匙，鍍鉻
鑰匙可單抽或者雙抽
鍍銀接點及端子
S202ZC 4支端子，通電方式OFF-ON-ON
S202ZD 4支端子，通電方式ON-ON
S202ZDA 4支端子，通電方式ON-ON,鑰匙為反彈式
鎖頭固定方式為六角螺母
規格品為同號或每100PCS作1組鑰匙組合
最多有10000組鑰匙組合
Introduction
No.S202ZC S202ZD S202ZDA
Product Name S202ZC S202ZD S202ZDA
Description
Zinc alloy die cast housing and cylinder
Bright chrome plated standard.
7 pin tumbler mechanism.
Steel made tubular keys, nickel plated.
Silver plated contacts and terminals.
S202ZC 3 position（OFF-ON-ON）4 terminals.
S202ZD 2 position (on-on) 4 terminals.
S202ZDA 2 position (on-on) 4 terminals, spring loaded for momentary contact.
Hex nut mounted.
