OFF-ON兩檔鑰匙開關
詳細介紹

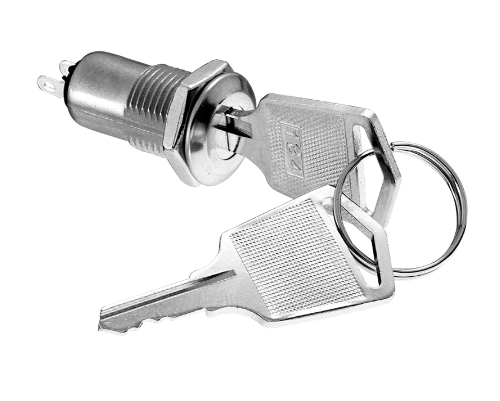

產品型號：S1091B 12mm鑰匙開關
產品名稱：KEYLOCK SWITCH
產品說明：鋅合金鎖殼，尼龍+玻纖鎖心
鎖殼包白鐵蓋
滾鉻電鍍
4個排片
銅鑰匙，鍍鎳
S1091BA握柄包膠套
鑰匙可雙抽或單抽
鍍銀接點及端子
2支端子，通電方式OFF-ON
鎖頭固定方式為六角螺母
規格品為同號或者20組鑰匙組合
最多有20組鑰匙組合

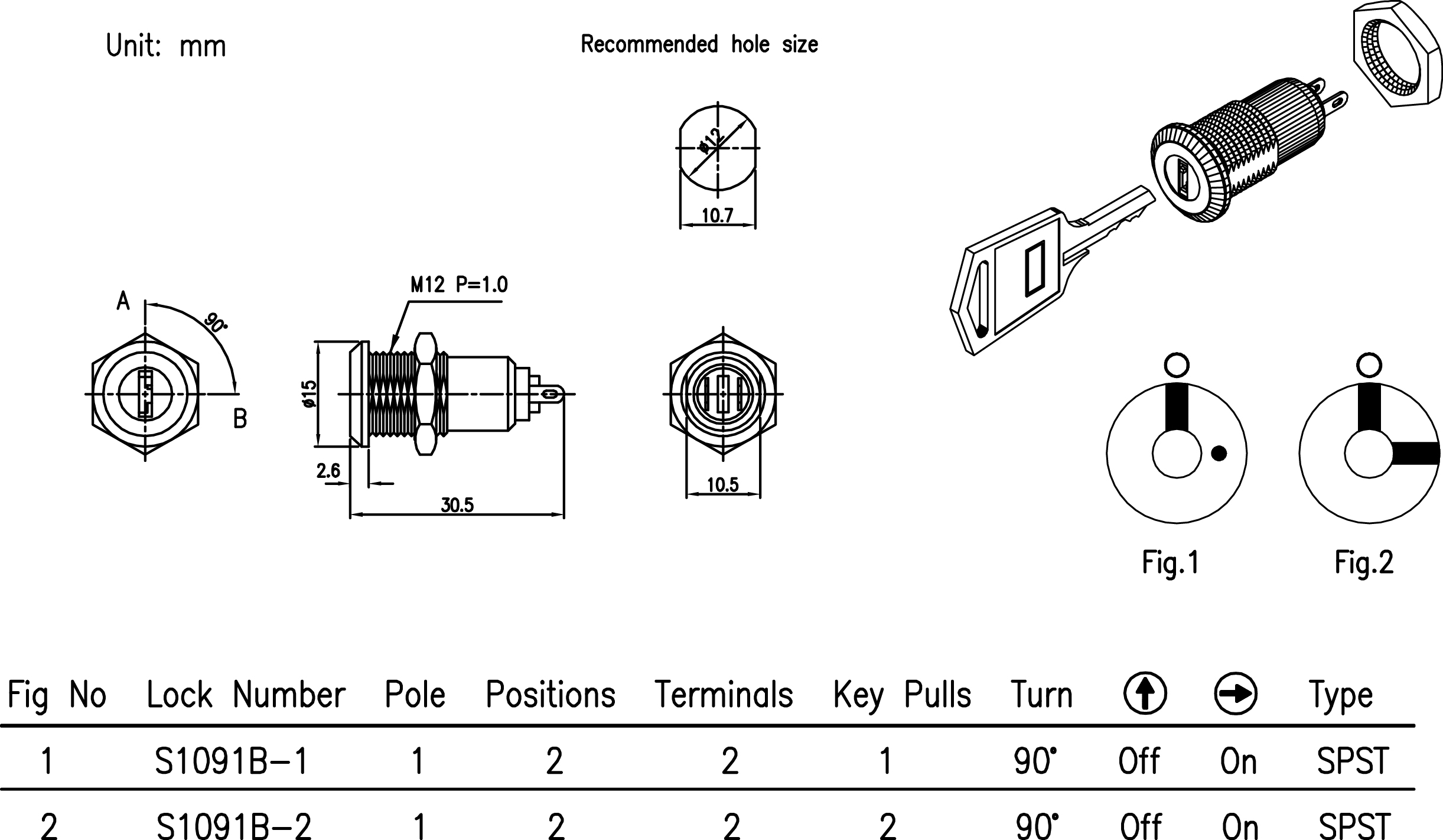

Introduction
No. S1091B
Product Name S1091B
Description
S1091B DESCRIPTION
Zinc alloy die cast housing and plastic cylinder.
Stainless steel capped bezel.
Chrome plated standard.
4 disc tumbler mechanism.
Brass keys, nickel plated.
Silver plated contacts and terminals.
2 position (off-on) 2 terminals.
Hex nut mounted.
