S1097
詳細介紹
Introduction

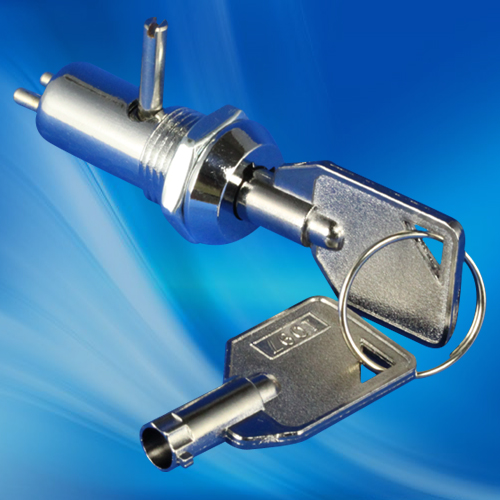

No. S1097
Product Name S1097
Description
Zinc alloy die cast housing and cylinder.
Bright chrome plated standard.
No pin tumbler mechanism.
Zinc alloy tubular keys, chrome plated.

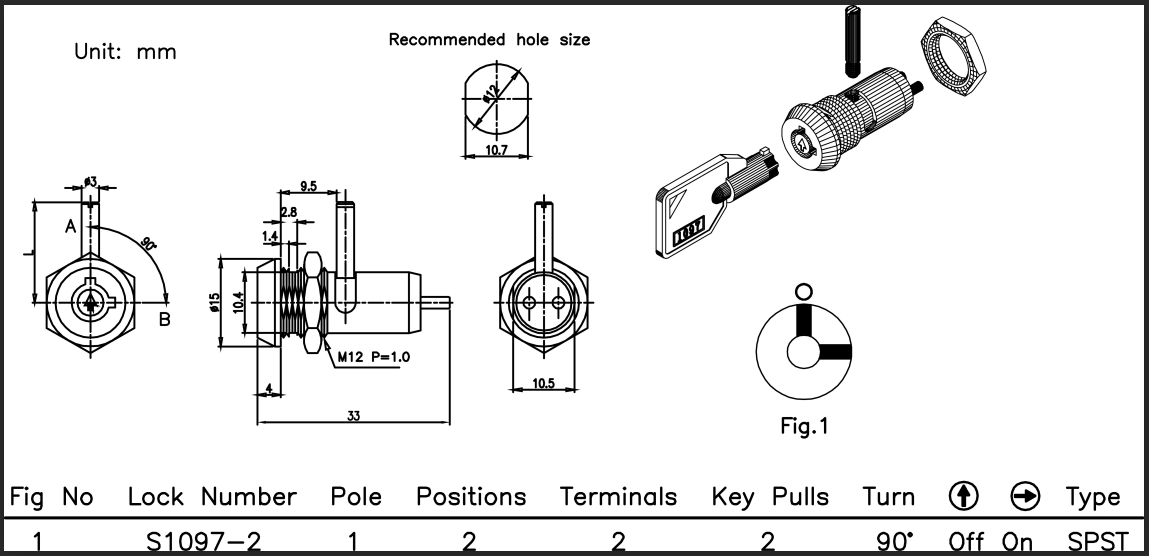

“L” dimension 13mm standard; other dimensions available upon request.

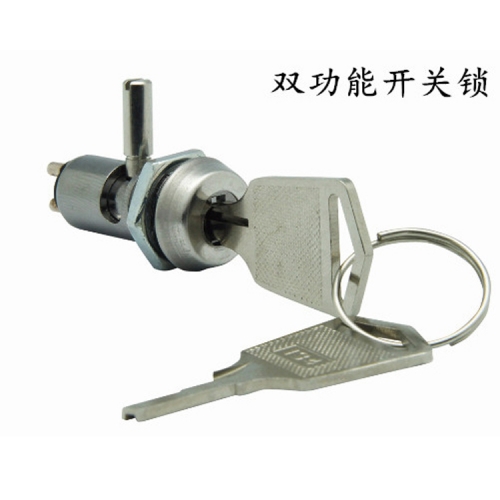

Dual-functioned Key Lock Switch.
Silver plated contacts and terminals.
2 position (off-on) 2 terminals.
Hex nut or speed clip mounted.
產品型號：S1097
產品名稱：KEYLOCK SWITCH
產品說明：
鋅合金鎖殼，鎖心，亮鉻電鍍
機械鎖珠子
鋅合金管鑰匙，鍍鉻
鐵棒標準規格為13mm，另可依客戶要求製作
電源及擋片雙功能鎖
鑰匙雙抽
鍍銀接點及端子
2支端子，通電方式OFF-ON
鎖頭固定方式為六角螺母或插片
規格品為同號或6組鑰匙組合
最多有6組鑰匙組合
