S1096
詳細介紹
12mm雙功能開關鎖，雙功能鑰匙開關，鑰匙開關廠家
Introduction

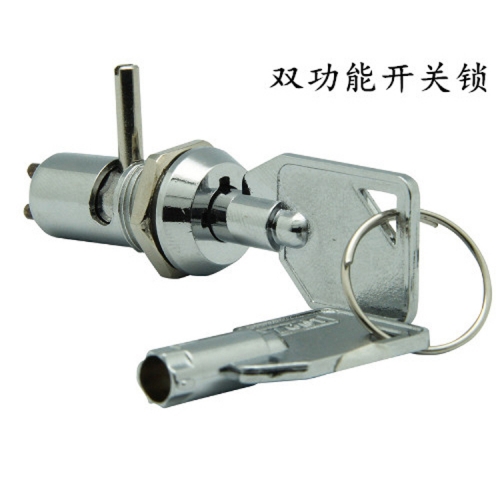

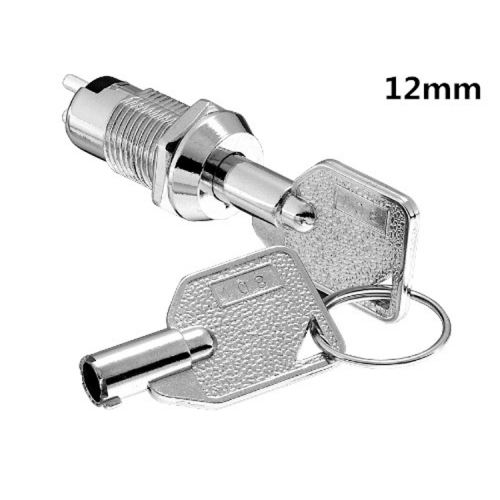

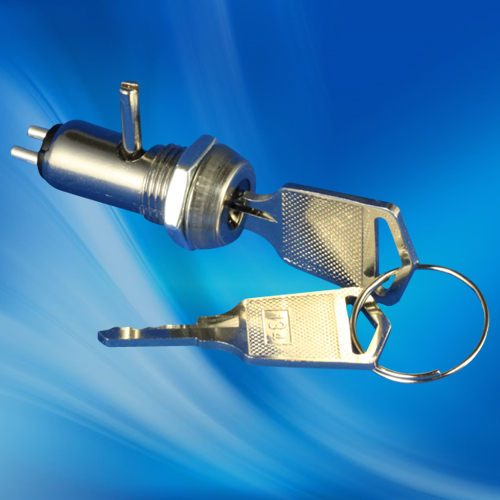

Product Name S1096
Description
Zinc alloy die cast housing and cylinder.
Stainless steel capped bezel.
Chrome plated standard.
4 disc tumbler mechanism.
Brass keys, nickel plated.

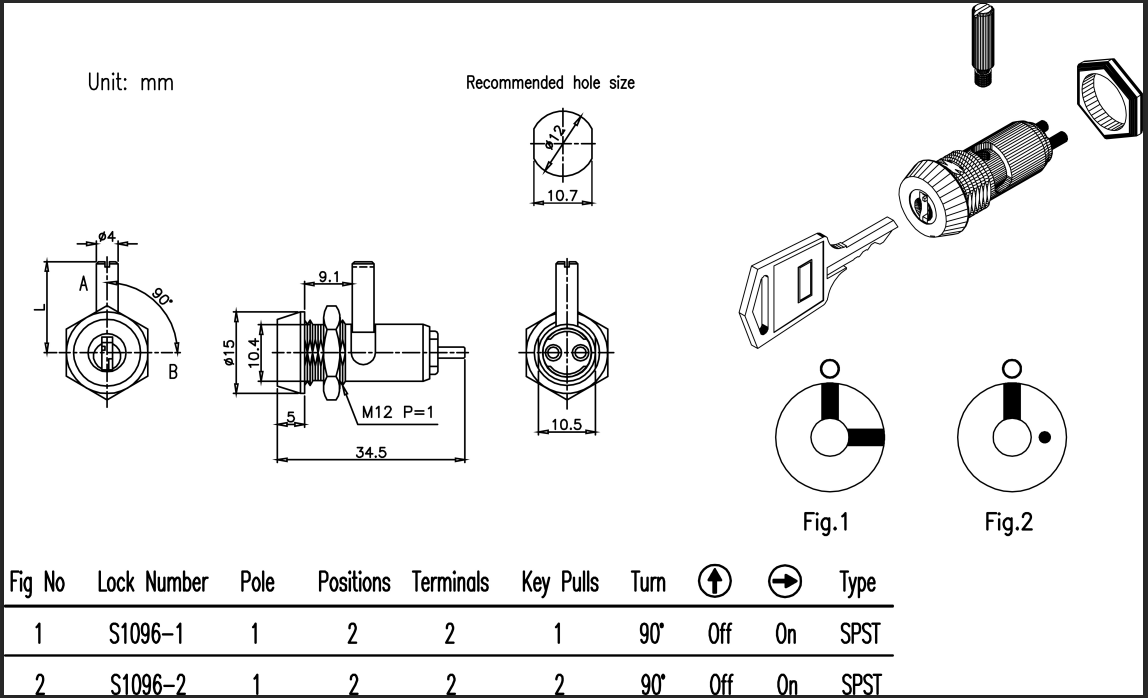

“L” dimension 13mm standard; other dimensions available upon request.
Dual-functioned Key Lock Switch.
Silver plated contacts and terminals.
2 position (off-on) 2 terminals.
Hex nut or speed clip mounted.
產品型號：S1096
產品名稱：雙功能開關鎖
產品說明：鋅合金鎖殼，亮鉻電鍍
鎖殼包白鐵蓋
4個排片
銅鑰匙，鍍鎳
鐵棒標準為13mm，另可按客戶要求製作
電源及擋片雙功能鎖
鑰匙可單抽或雙抽
鍍銀接點及端子
2支端子，通電方式OFF-ON
鎖頭固定方式為六角螺母或插片
規格品為同號或20組鑰匙組合
最多有20組鑰匙組合
