短款電源鎖,電子鎖廠家
詳細介紹

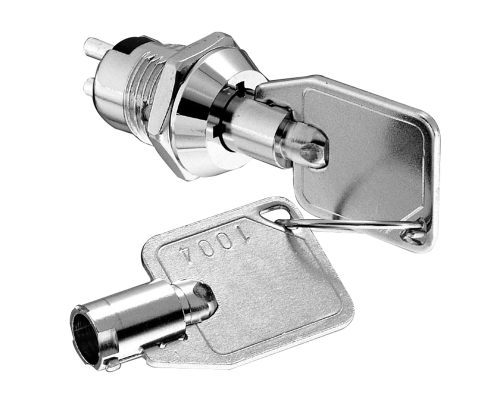

12mm鑰匙開關，電源鎖
產品型號：S126,S146
產品名稱：KEYLOCK SWITCH
產品說明：
鋅合金鎖科，鎖心，亮鉻電鍍
4個珠子
鐵製銅管鑰匙，鍍鎳
鑰匙可單抽或雙抽
鍍銀接點及端子
S126電源鎖 2支端子，通電方式 OFF-ON
S146電源鎖 2支端子，通電方式 ON-ON
鎖頭固定方式為六角螺母
規格品為同號或每100PCS作1組鑰匙組合
最多有150組鑰匙組合
Introduction

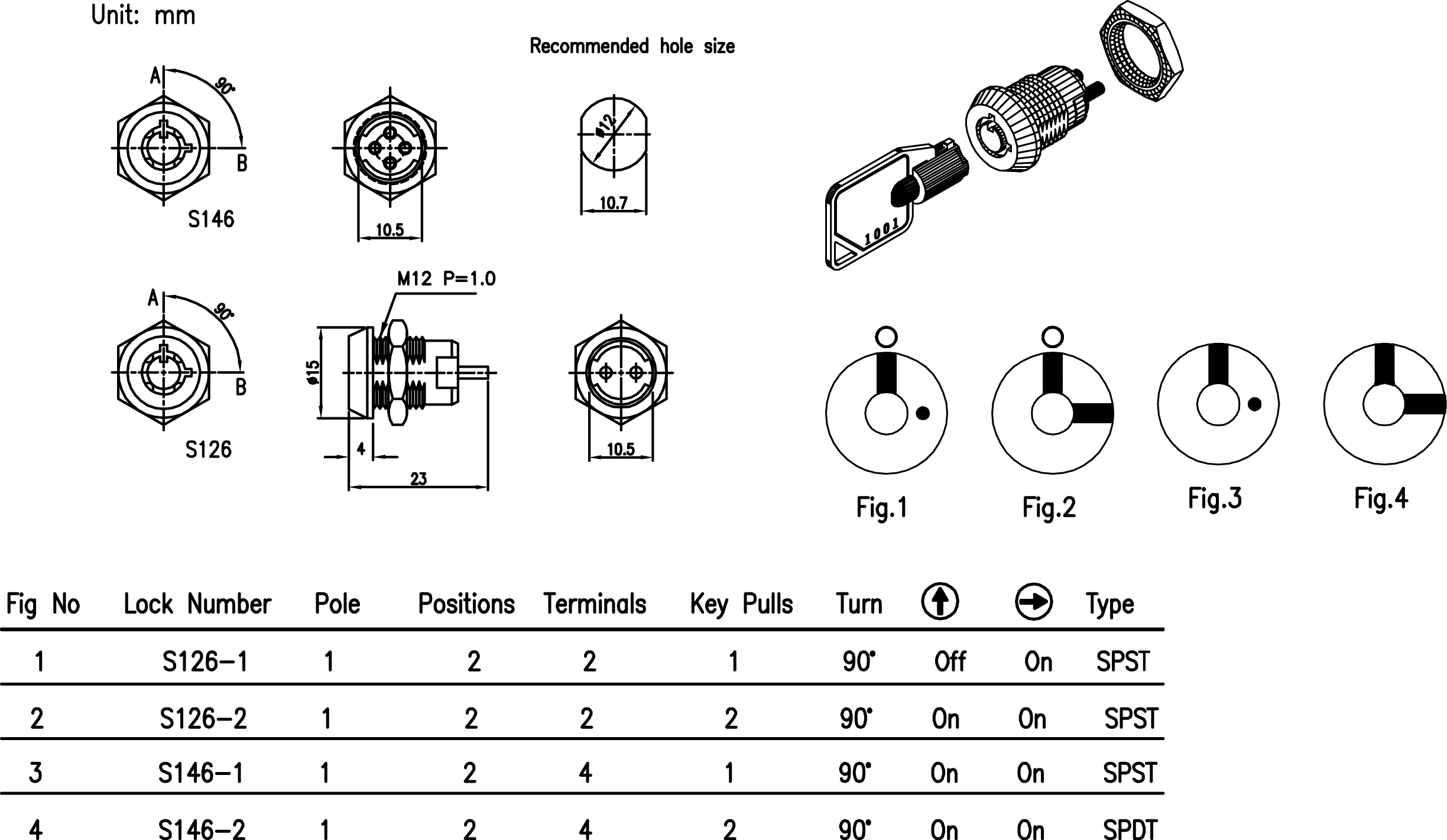

No. S126 S146
Product Name S126 S146
Description
S126 S146 DESCRIPTION
Zinc alloy die cast housing and cylinder.
Bright chrome plated standard.
4 pin tumbler mechanism.
Steel made tubular keys, nickel plated.
Silver plated contacts and terminals.
S126 2 position (off-on) 2 terminals.
S146 2 position (on-on) 4 terminals.
Hex nut mounted.
產品型號：S126,S146
產品名稱：KEYLOCK SWITCH
產品說明：
鋅合金鎖科，鎖心，亮鉻電鍍
4個珠子
鐵製銅管鑰匙，鍍鎳
鑰匙可單抽或雙抽
鍍銀接點及端子
S126電源鎖 2支端子，通電方式 OFF-ON
S146電源鎖 2支端子，通電方式 ON-ON
鎖頭固定方式為六角螺母
規格品為同號或每100PCS作1組鑰匙組合
最多有150組鑰匙組合
Introduction
No. S126 S146
Product Name S126 S146
Description
S126 S146 DESCRIPTION
Zinc alloy die cast housing and cylinder.
Bright chrome plated standard.
4 pin tumbler mechanism.
Steel made tubular keys, nickel plated.
Silver plated contacts and terminals.
S126 2 position (off-on) 2 terminals.
S146 2 position (on-on) 4 terminals.
Hex nut mounted.
