12mm小型鑰匙開關
詳細介紹

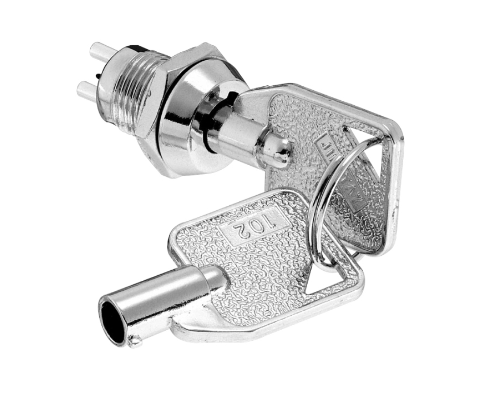

12mm鑰匙鎖
產品型號：NS102
產品名稱：KEY LOCK SWITCH
產品說明：
鋅合金鎖殼，鎖心，滾鉻電鍍
機械式珠子
鋅合金管鑰匙，鍍鉻
鑰匙雙抽
鍍銀接點及端子
2支端子，通電方式OFF-ON
鎖頭固定方式為六角螺母或插片
1組鑰匙組合
Description

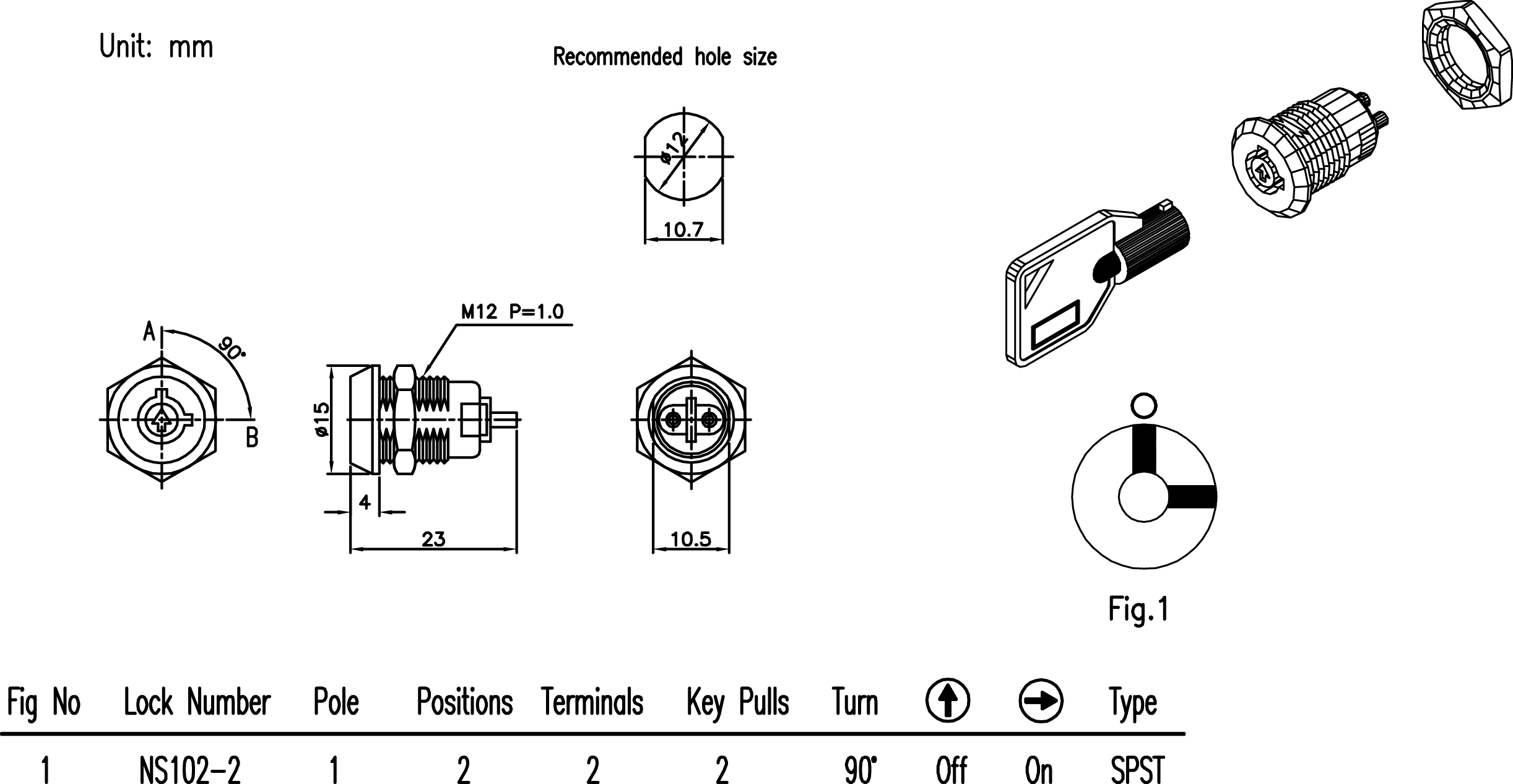

NS102 DESCRIPTION
Zinc alloy die cast housing and cylinder.
Chrome plated standard.
No pin tumbler mechanism.
Zinc alloy tubular keys, chrome plated.
Silver plated contacts and terminals.
2 position (off-on) 2 terminals.
Hex nut or speed clip mounted.
12mm鑰匙鎖
產品型號：NS102
產品說明：
鋅合金鎖殼，鎖心，滾鉻電鍍
機械式珠子
鋅合金管鑰匙，鍍鉻
鑰匙雙抽
鍍銀接點及端子
2支端子，通電方式OFF-ON
鎖頭固定方式為六角螺母或插片
1組鑰匙組合
Description
NS102 DESCRIPTION
Zinc alloy die cast housing and cylinder.
Chrome plated standard.
No pin tumbler mechanism.
Zinc alloy tubular keys, chrome plated.
Silver plated contacts and terminals.
2 position (off-on) 2 terminals.
Hex nut or speed clip mounted.
