微型翹板開關
詳細介紹
3YCM係列

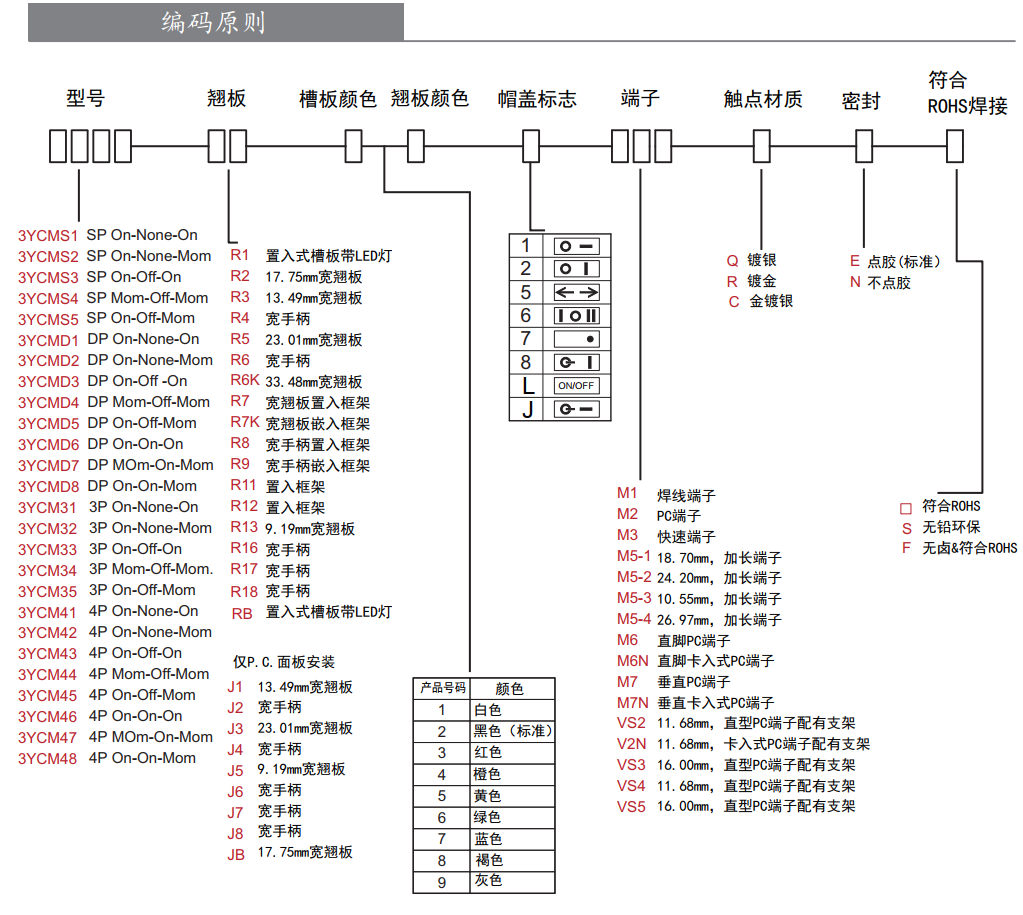

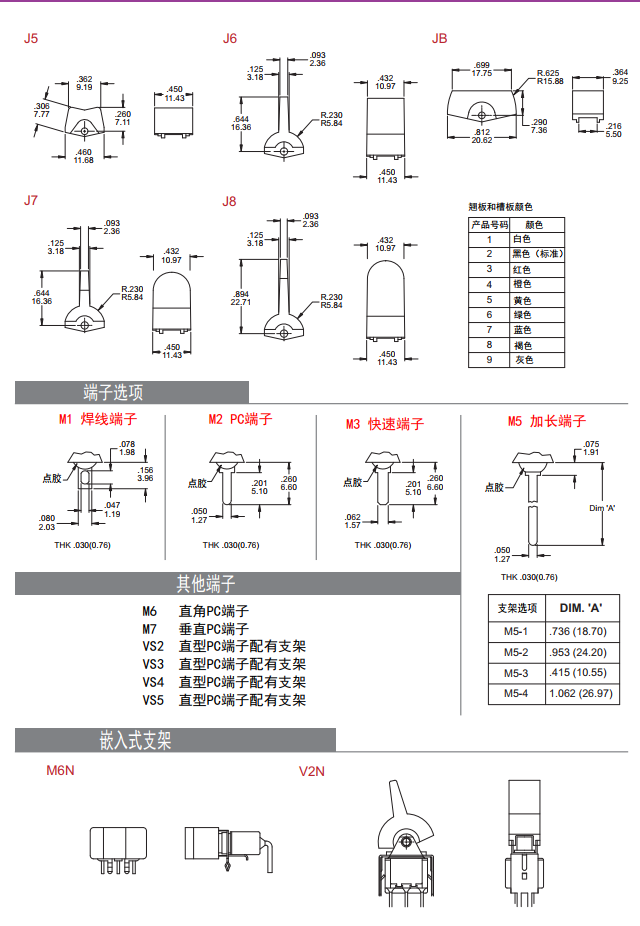

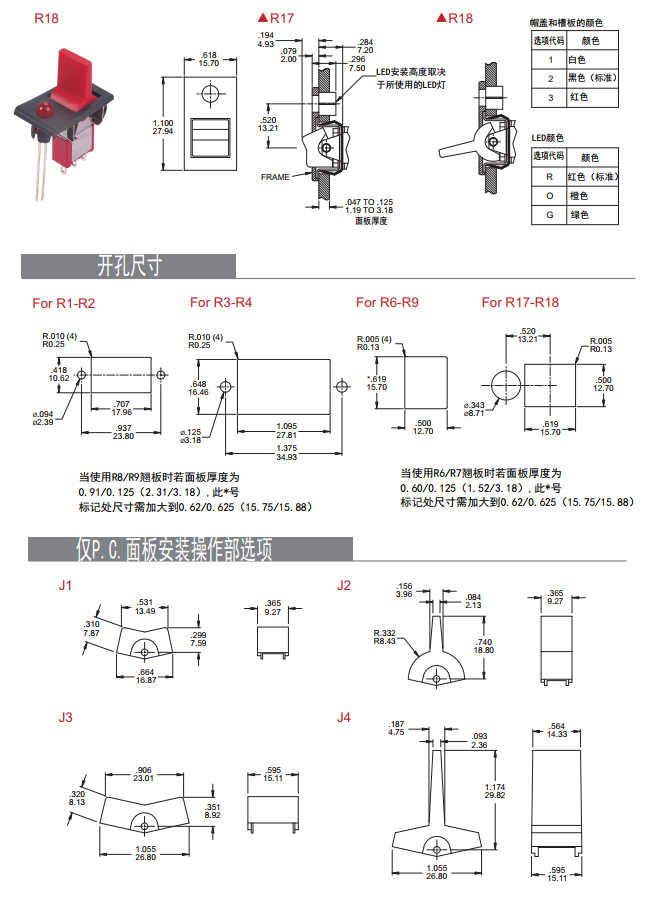

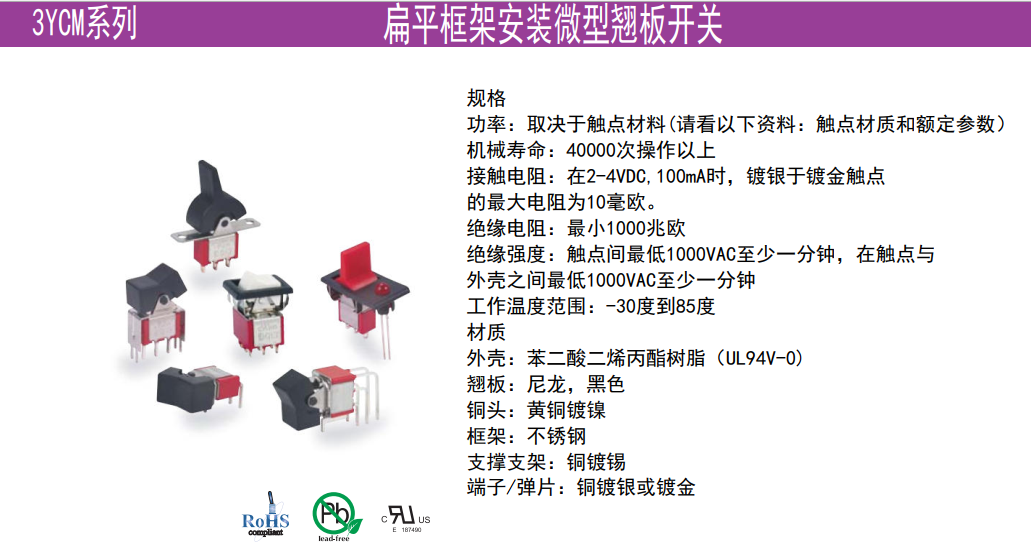

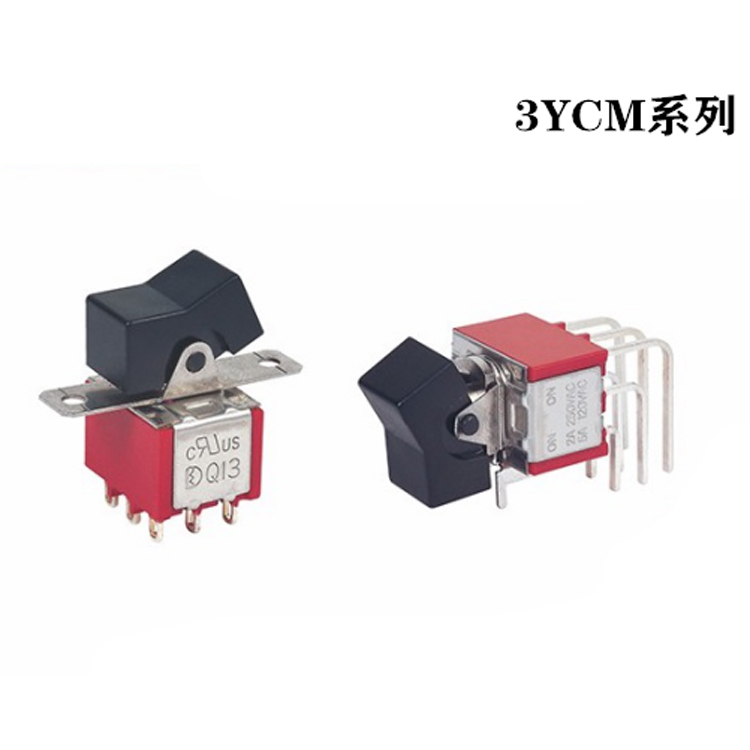

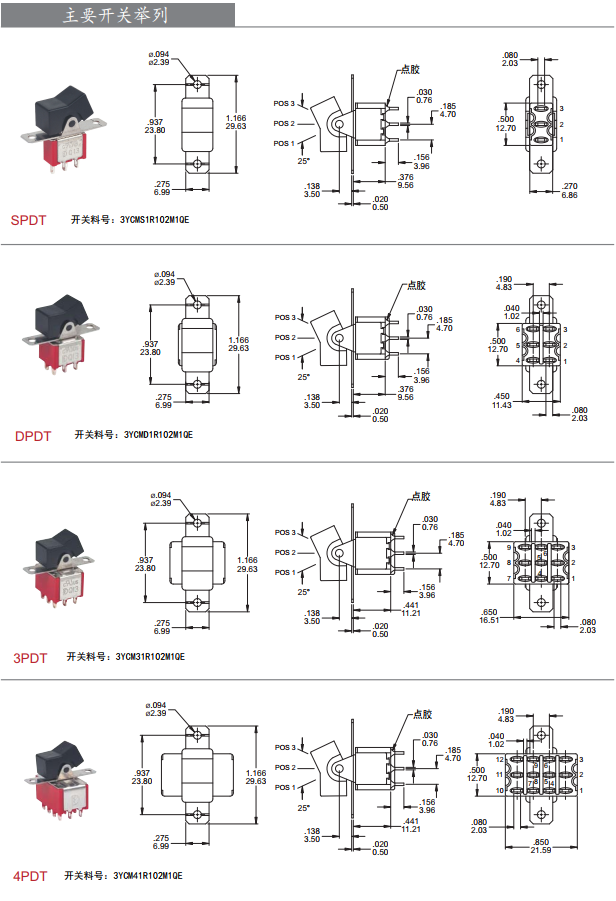

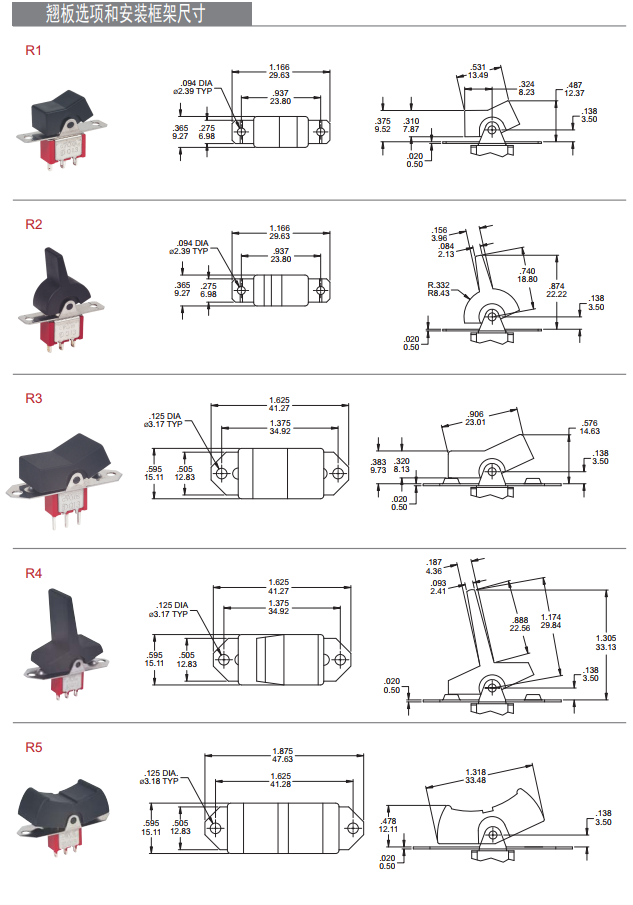

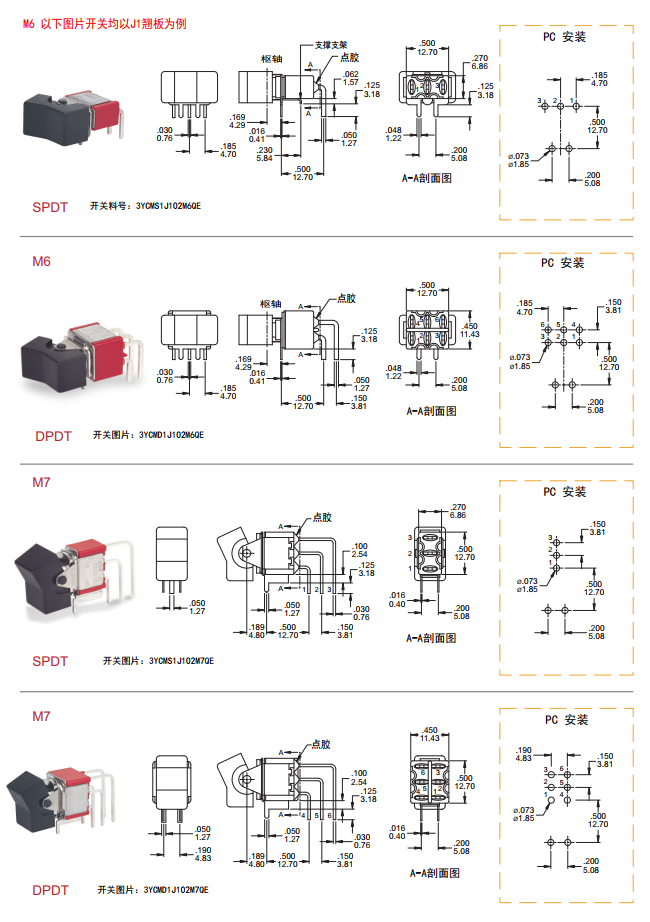

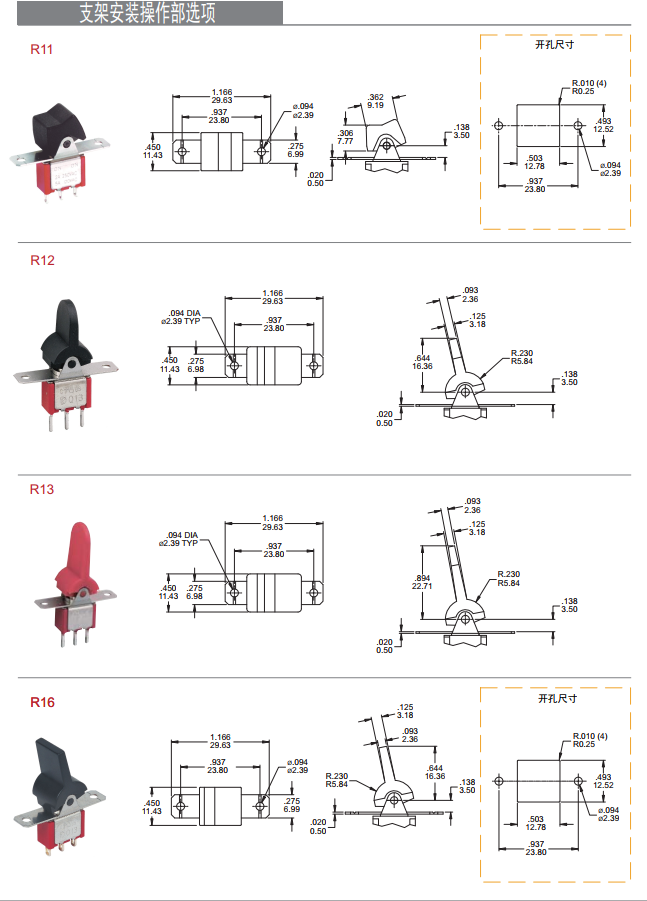

扁平框架安裝微型翹板開關圖片展示:

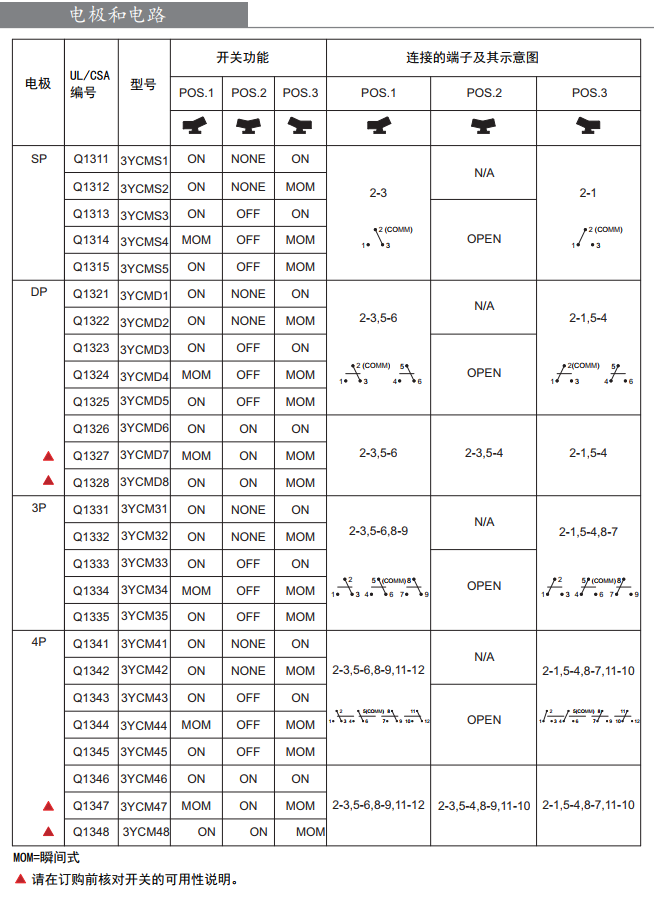

3YCM係列扁平框架安裝微型翹板開關規格：
特色:多段數,帽子和端子有多樣化的選,端子點膠能預防在焊錫時汙染物
應用範圍:電信,儀器.測試設備,醫療設備.
功率：取決於觸點材料(5A@120VAC和28VDC 2A@250VAC/最大0.4VA@最高20VAC/DC）
機械壽命：40000次操作以上
接觸電阻：在2-4VDC,100mA時，鍍銀於鍍金觸點
的最大電阻為10毫歐。
絕緣電阻：最小1000兆歐
絕緣強度：觸點間最低1000VAC至少一分鍾，在觸點與
外殼之間最低1000VAC至少一分鍾
工作溫度範圍：-30度到85度
材質
外殼：苯二酸二烯丙酯樹脂（UL94V-0)
翹板：尼龍，黑色
銅頭：黃銅鍍鎳
框架：不鏽鋼
支撐支架：銅鍍錫
端子/彈片：銅鍍銀或鍍金

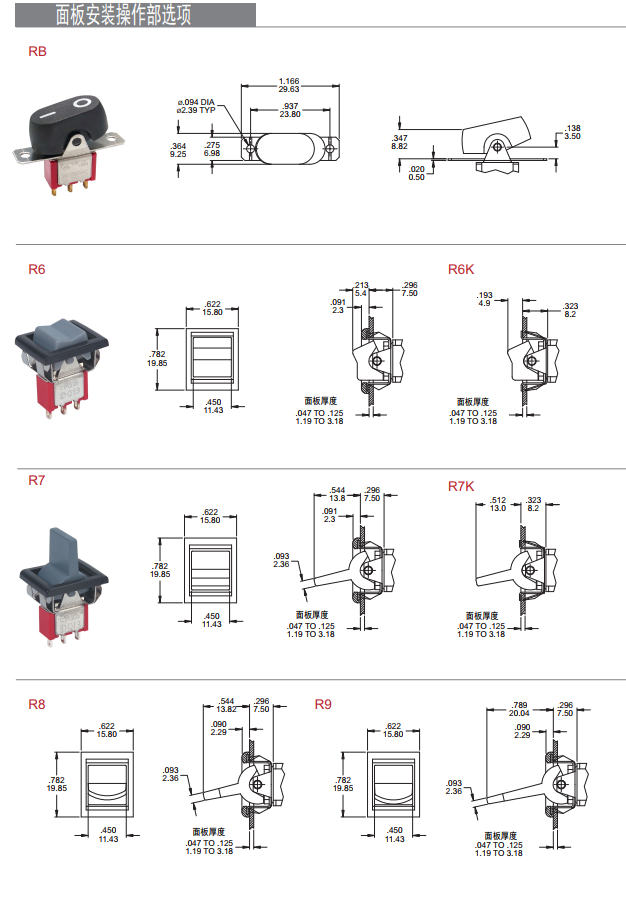

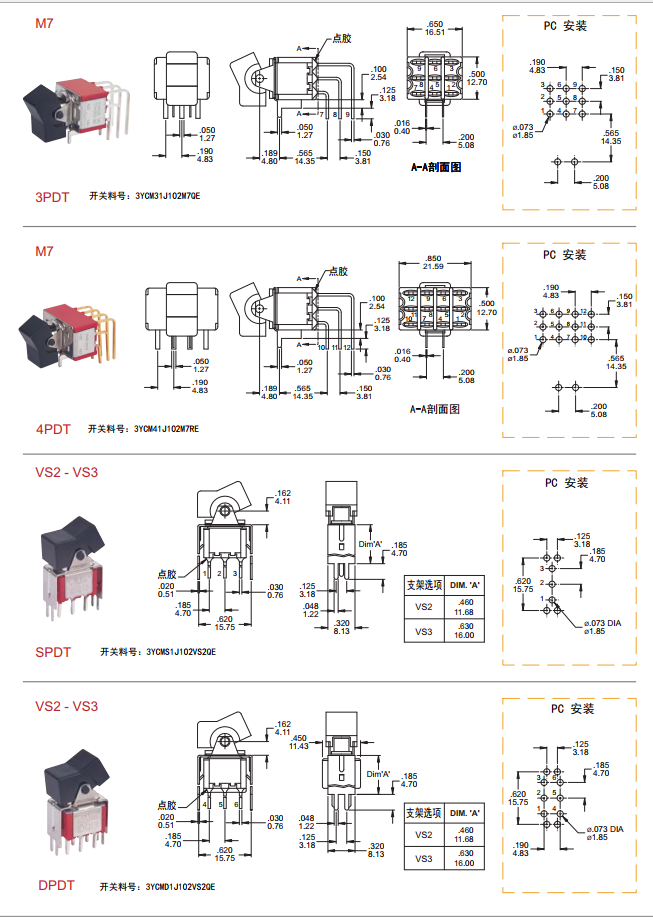

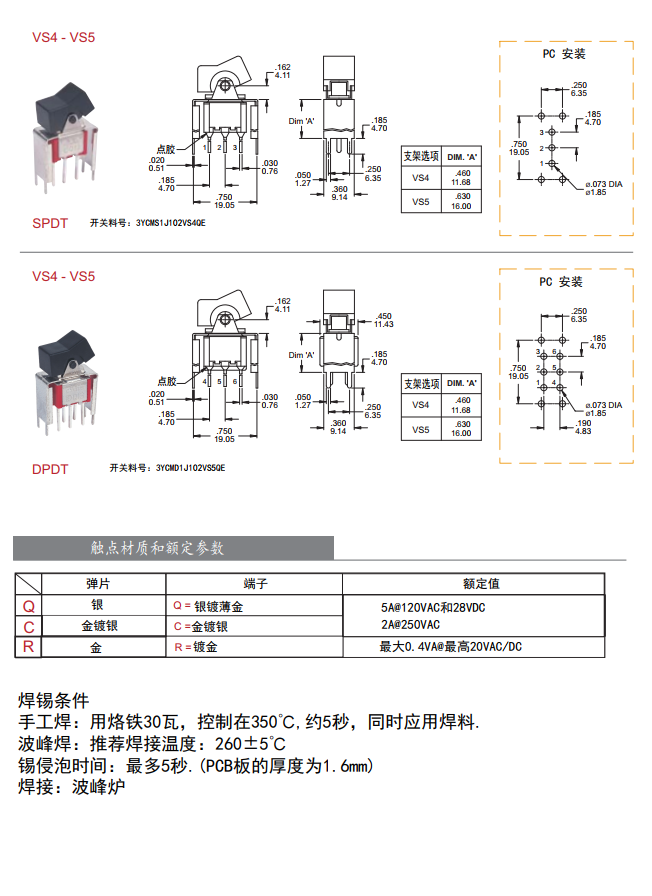

焊錫條件
手工焊：用烙鐵30瓦，控製在350℃,約5秒，同時應用焊料.
波峰焊：推薦焊接溫度：260±5℃
錫侵泡時間：最多5秒.(PCB板的厚度為1.6mm)
焊接：波峰爐
3YCM係列扁平框架安裝微型翹板開關英文規格：
SPECIFICATIONS
CONTACT RATING: Dependent upon contact material.
MECHANICAL LIFE: 40,000 make-and-break cycles.
CONTACT RESISTANCE: 10 mȟġmax. initial @ 2-4VDC
100mA for both silver and gold plated contacts.
INSULATION RESISTANCE: 1,000 Mȟġmin.
DIELECTRIC STRENGTH: 1,000 Vrms min.@sea level.
OPERATING TEMPERATURE: -30°C to 85°C.
MATERIALS
CASE: Diallyl phthalate (DAP) (UL94v-0).
ACTUATOR: Nylon,black std.
BUSHING: Brass or Zinc,nickel plated.
HOUSING: Stainless Steel.
SWITCH SUPPORT: Brass,tin plated.
TERMINAL/CONTACT: Brass,with silver or gold plated.
SOLDERING PROCESSES
MANUAL SOLDERING: Use soldering iron of 30 watts, controlled at 350°C
approximately 5 seconds while applying solder.
WAVE SOLDERING: Recommended Soldering Temperature: 260 ± 5°C
Duration of Solder Immersion: Max 5 sec. (PCB is 1.6mm in thickness)
