迷你型滑動開關
詳細介紹

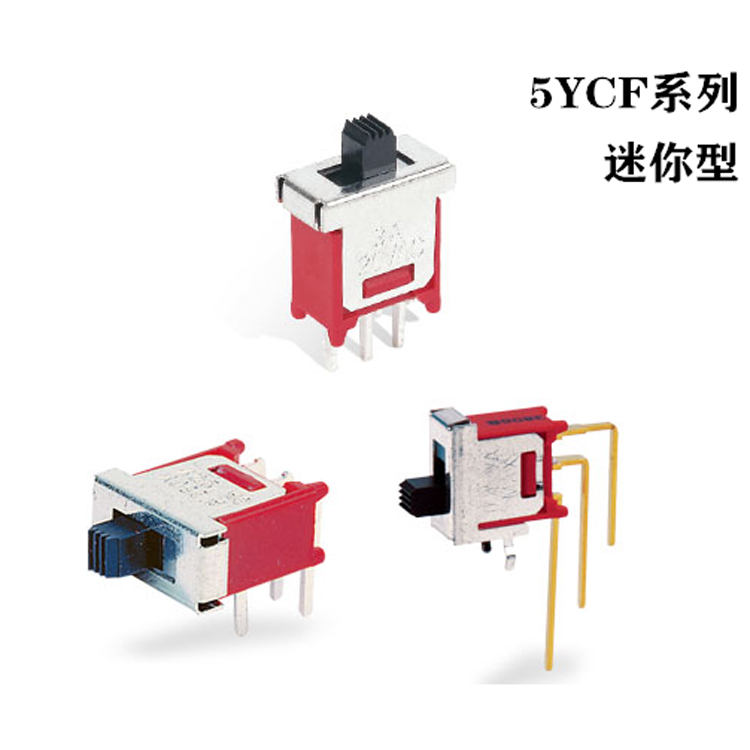

5YCF係列

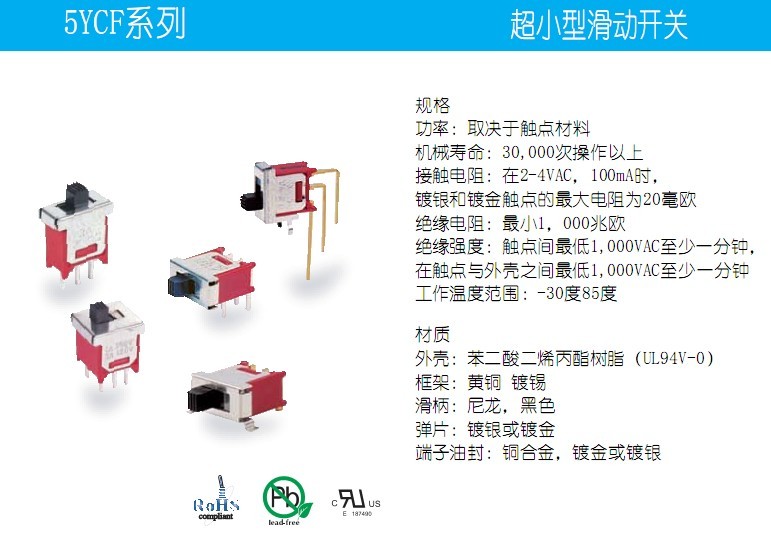

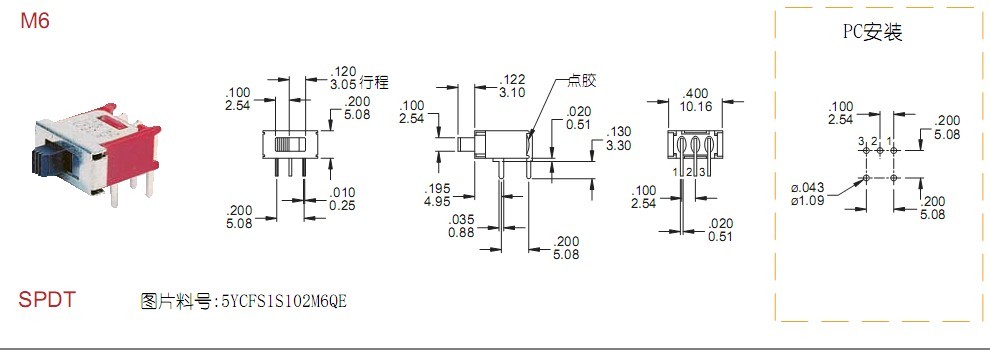

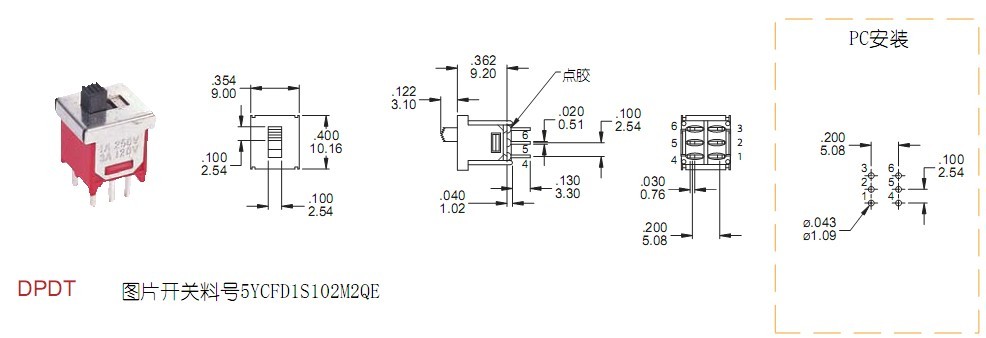

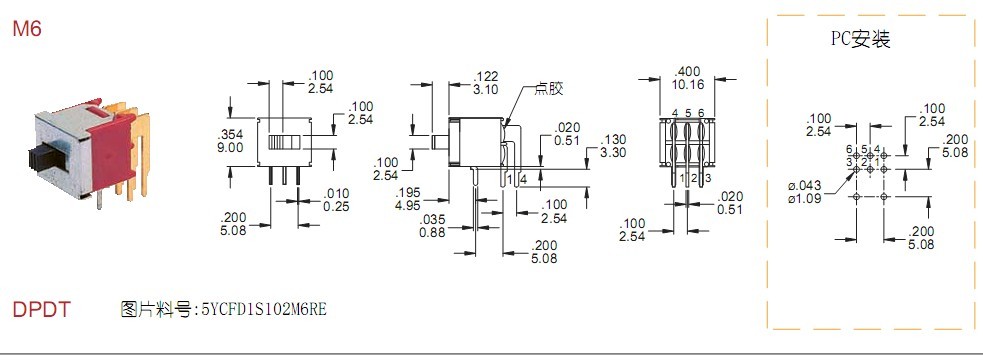

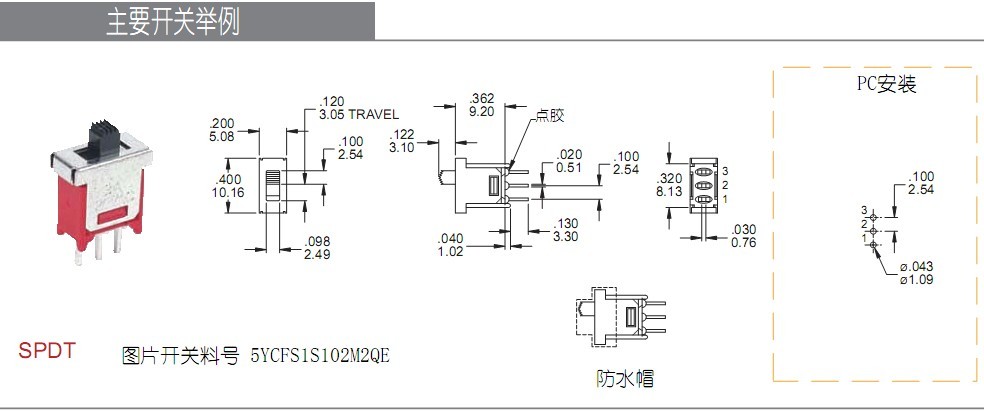

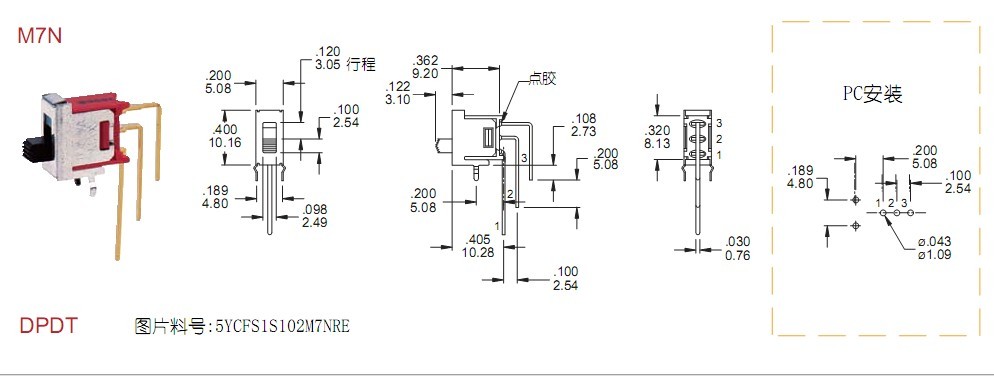

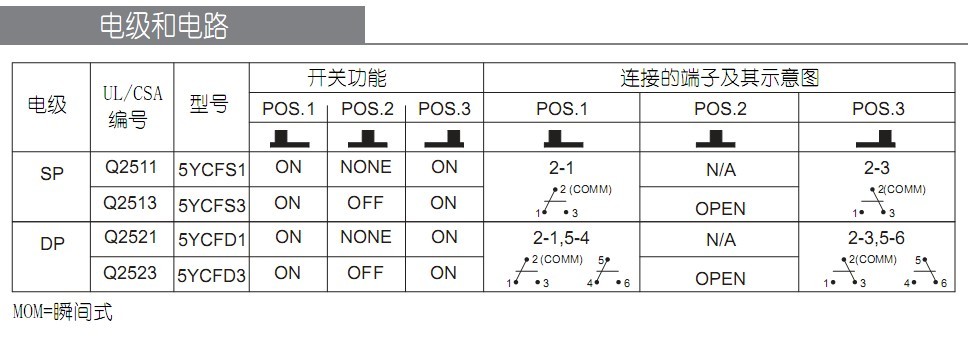

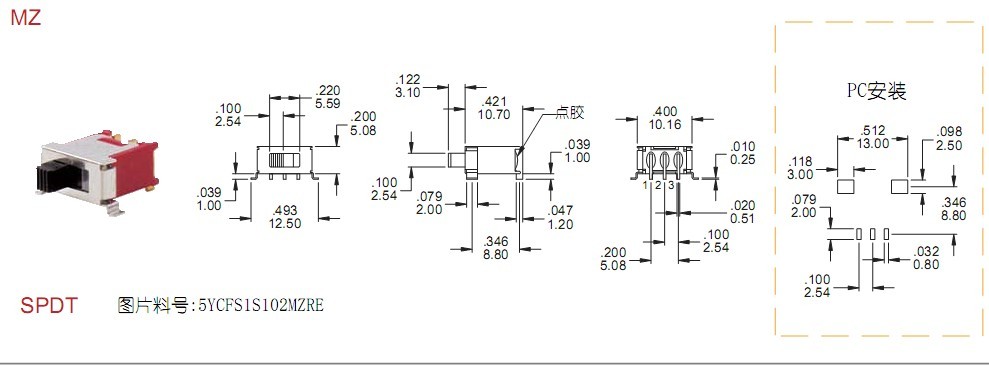

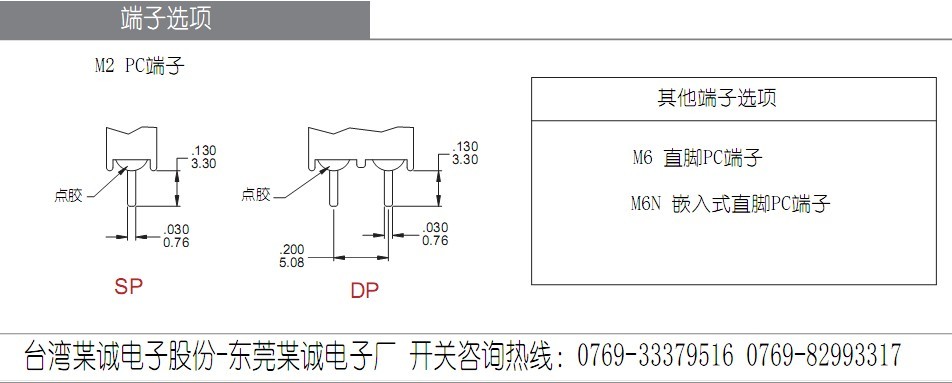

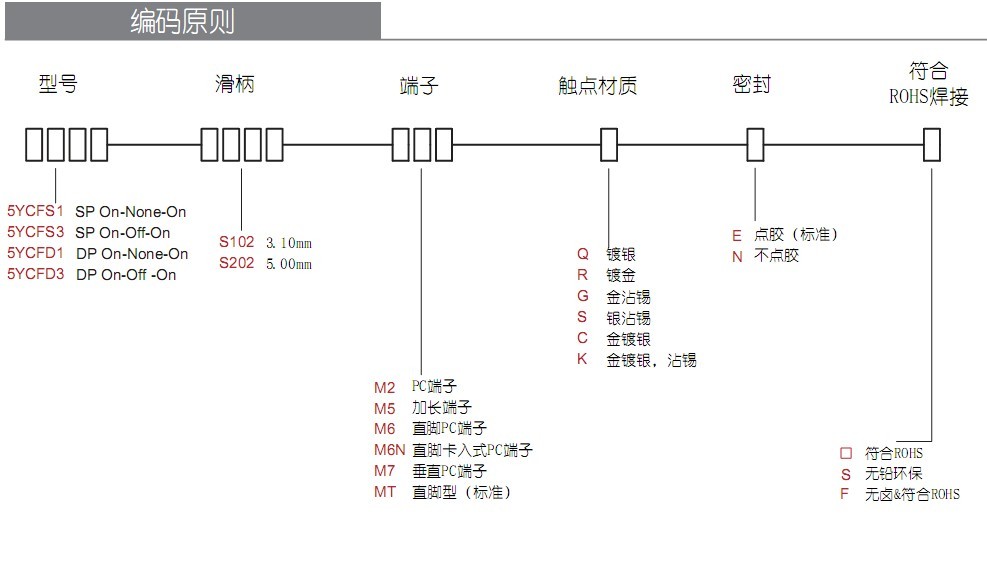

超小型滑動開關圖片展示:
超小型滑動開關中文規格:
特色:可靠的跳板設計能確保長機械壽命,電壓可到 3 Amps,端子點膠防水–底部可共合-可洗淨.
應用範圍：測試和測量設備,電腦及其周邊電信和網通設備.

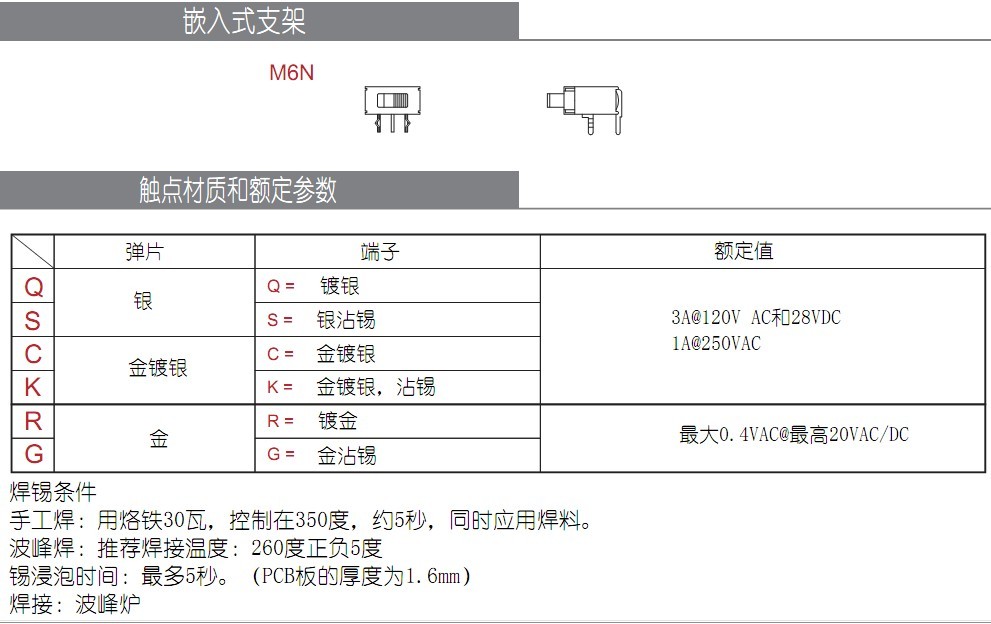

功率：取決於觸點材料【3A@120V AC和28VDC 1A@250VAC/最大0.4VAC@最高20VAC/DC】
機械壽命：30,000次操作以上
接觸電阻：在2-4VAC，100mA時，
鍍銀和鍍金觸點的最大電阻為20毫歐
絕緣電阻：最小1，000兆歐
絕緣強度：觸點間最低1,000VAC至少一分鍾，
在觸點與外殼之間最低1,000VAC至少一分鍾
工作溫度範圍：-30度85度
材質
外殼：苯二酸二烯丙酯樹脂（UL94V-0）
框架：黃銅 鍍錫
滑柄：尼龍，黑色
彈片：鍍銀或鍍金
端子油封：銅合金，鍍金或鍍銀
焊錫條件
手工焊：用烙鐵30瓦，控製在350度，約5秒，同時應用焊料。
波峰焊：推薦焊接溫度：260度正負5度
錫浸泡時間：最多5秒。（PCB板的厚度為1.6mm）
焊接：波峰爐
5YCF係列超小型滑動開關英文規格:
SPECIFICATIONS
CONTACT RATING: Dependent upon contact material.
MECHANICAL LIFE: 30,000 make-and-break cycles.
CONTACT RESISTANCE: 20 mӨʳmax. initial @ 2-4VDC
100mA for both silver and gold plated contacts.
INSULATION RESISTANCE: 1,000 MӨʳmin.
DIELECTRIC STRENGTH: 1,000 Vrms min.@sea level.
OPERATING TEMPERATURE: -30°C to 85°C.
MATERIALS
CASE: Diallyl phthalate (DAP) (UL94v-0).
HOUSING: Brass,tin plated.
ACTUATOR: Nylon,black std.
CONTACT: Brass,with silver or gold plated.
TERMINAL SEAL: Copper alloy,with silver and gold plated .
SOLDERING PROCESSES
MANUAL SOLDERING: Use soldering iron of 30 watts, controlled at 350°C
approximately 5 seconds while applying solder.
WAVE SOLDERING: Recommended Soldering Temperature: 260 ± 5°C
Duration of Solder Immersion: Max 5 sec. (PCB is 1.6mm in thickness)
超小型滑動開關圖片展示:
超小型滑動開關中文規格:
特色:可靠的跳板設計能確保長機械壽命,電壓可到 3 Amps,端子點膠防水–底部可共合-可洗淨.
應用範圍：測試和測量設備,電腦及其周邊電信和網通設備.
功率：取決於觸點材料【3A@120V AC和28VDC 1A@250VAC/最大0.4VAC@最高20VAC/DC】
機械壽命：30,000次操作以上
接觸電阻：在2-4VAC，100mA時，
鍍銀和鍍金觸點的最大電阻為20毫歐
絕緣電阻：最小1，000兆歐
絕緣強度：觸點間最低1,000VAC至少一分鍾，
在觸點與外殼之間最低1,000VAC至少一分鍾
工作溫度範圍：-30度85度
材質
外殼：苯二酸二烯丙酯樹脂（UL94V-0）
框架：黃銅 鍍錫
滑柄：尼龍，黑色
彈片：鍍銀或鍍金
端子油封：銅合金，鍍金或鍍銀
焊錫條件
手工焊：用烙鐵30瓦，控製在350度，約5秒，同時應用焊料。
波峰焊：推薦焊接溫度：260度正負5度
錫浸泡時間：最多5秒。（PCB板的厚度為1.6mm）
焊接：波峰爐
5YCF係列超小型滑動開關英文規格:
SPECIFICATIONS
CONTACT RATING: Dependent upon contact material.
MECHANICAL LIFE: 30,000 make-and-break cycles.
CONTACT RESISTANCE: 20 mӨʳmax. initial @ 2-4VDC
100mA for both silver and gold plated contacts.
INSULATION RESISTANCE: 1,000 MӨʳmin.
DIELECTRIC STRENGTH: 1,000 Vrms min.@sea level.
OPERATING TEMPERATURE: -30°C to 85°C.
MATERIALS
CASE: Diallyl phthalate (DAP) (UL94v-0).
HOUSING: Brass,tin plated.
ACTUATOR: Nylon,black std.
CONTACT: Brass,with silver or gold plated.
TERMINAL SEAL: Copper alloy,with silver and gold plated .
SOLDERING PROCESSES
MANUAL SOLDERING: Use soldering iron of 30 watts, controlled at 350°C
approximately 5 seconds while applying solder.
WAVE SOLDERING: Recommended Soldering Temperature: 260 ± 5°C
Duration of Solder Immersion: Max 5 sec. (PCB is 1.6mm in thickness)
