微電流鈕子開關
詳細介紹
1YCF係列:

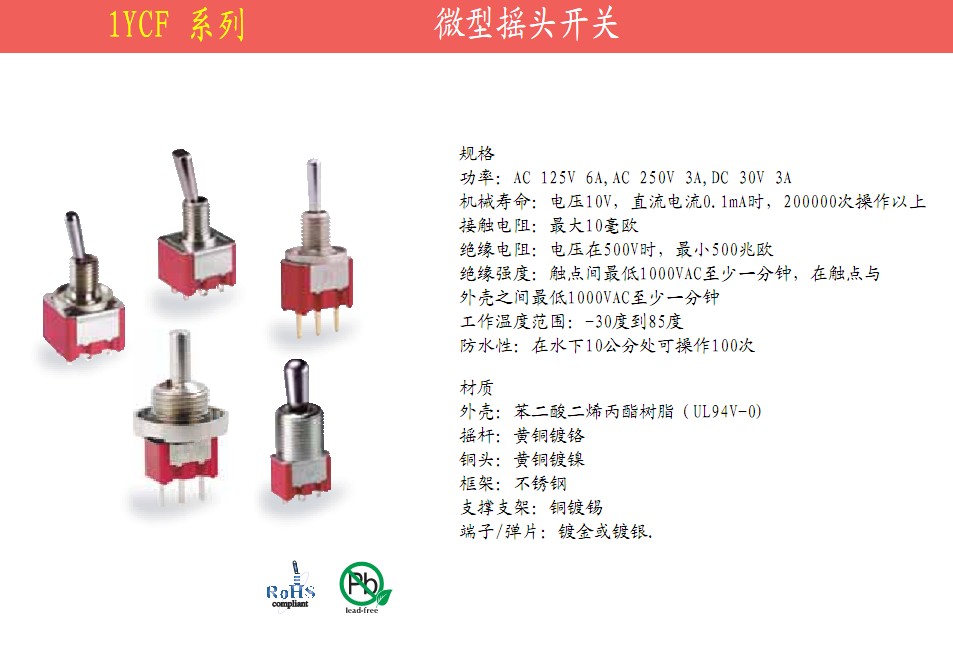

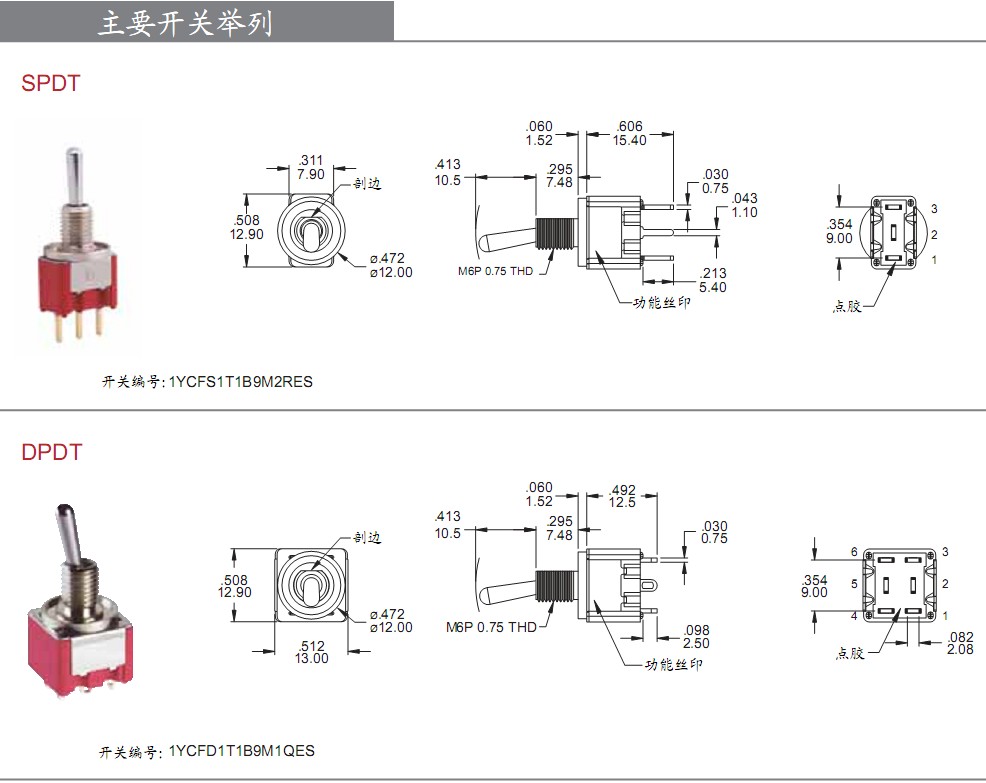

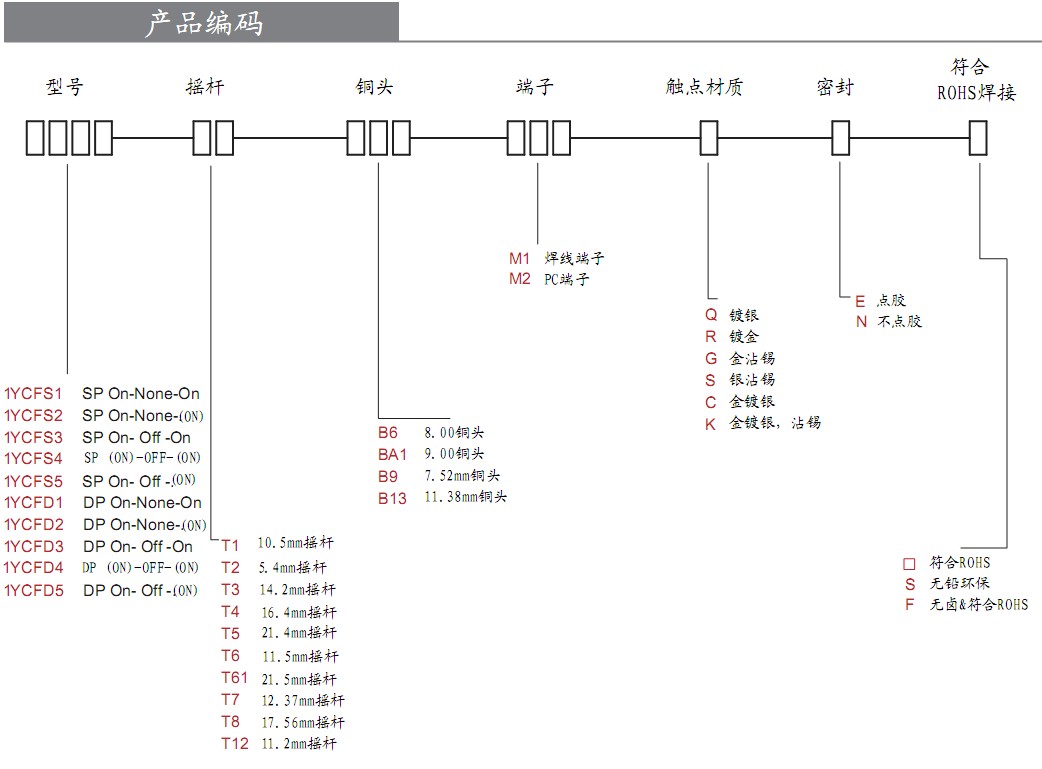

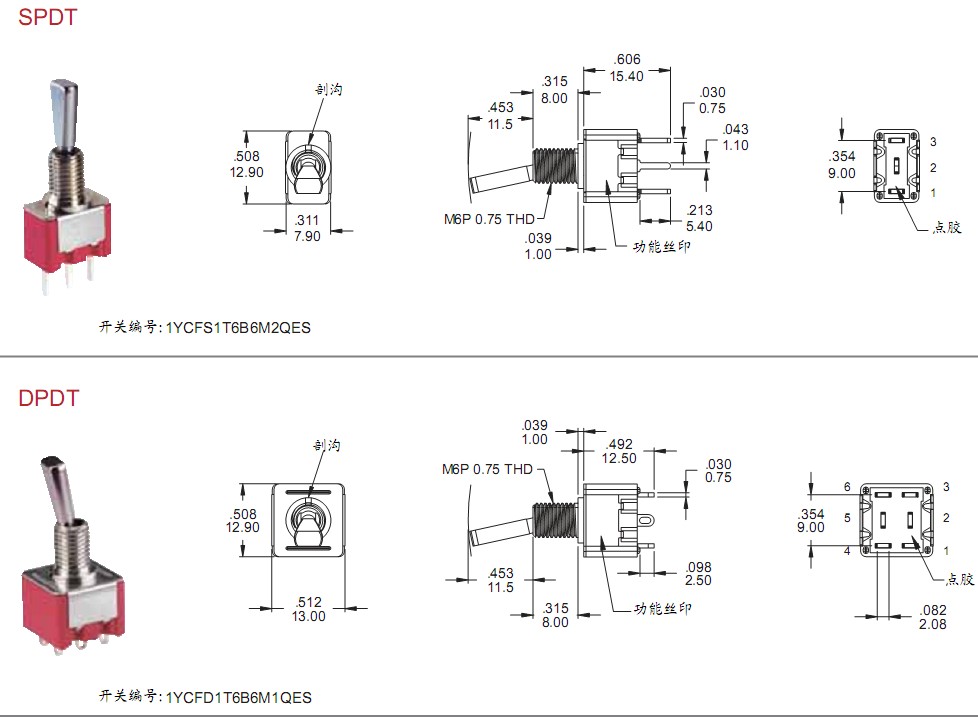

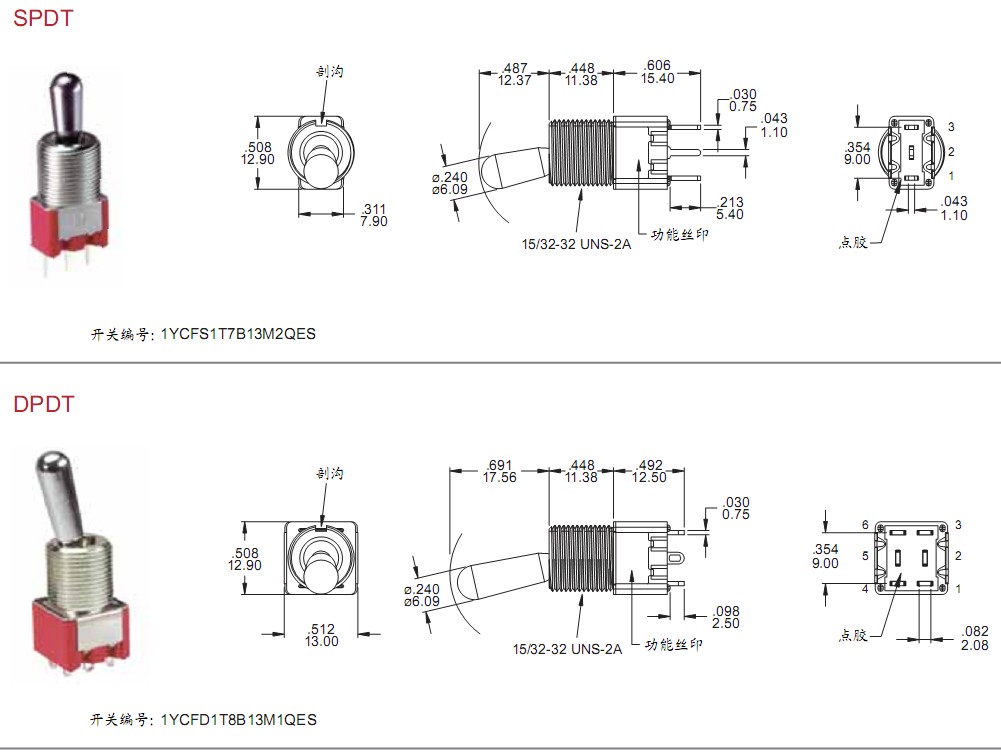

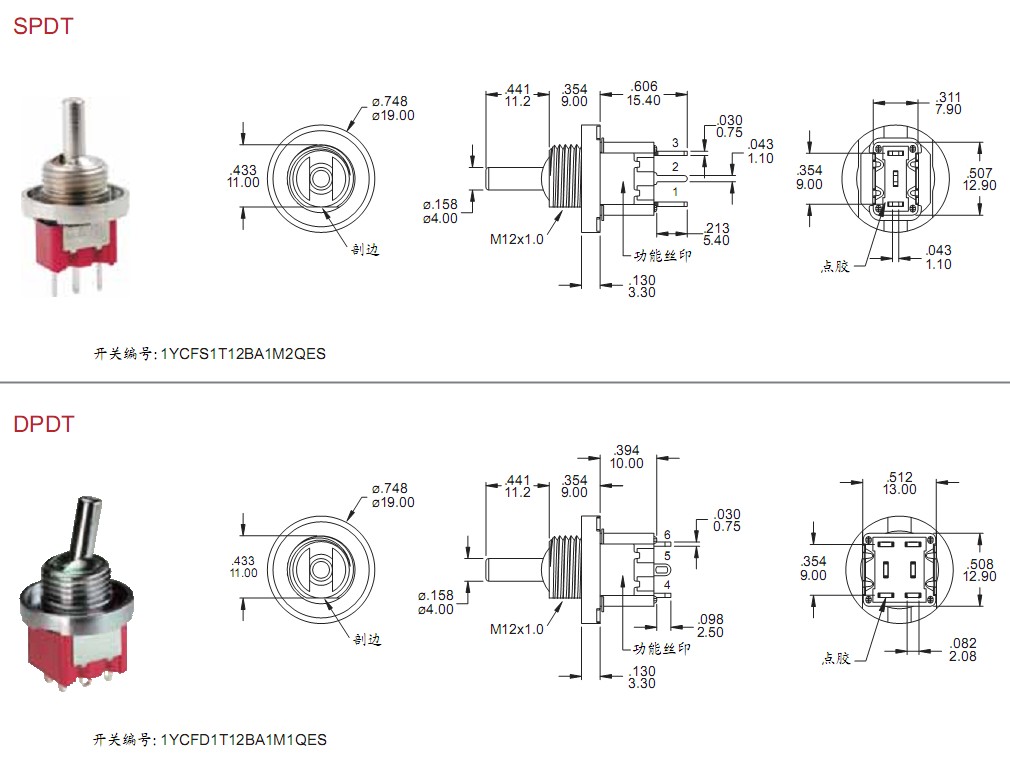

高壽命鈕子開關產品圖片展示：

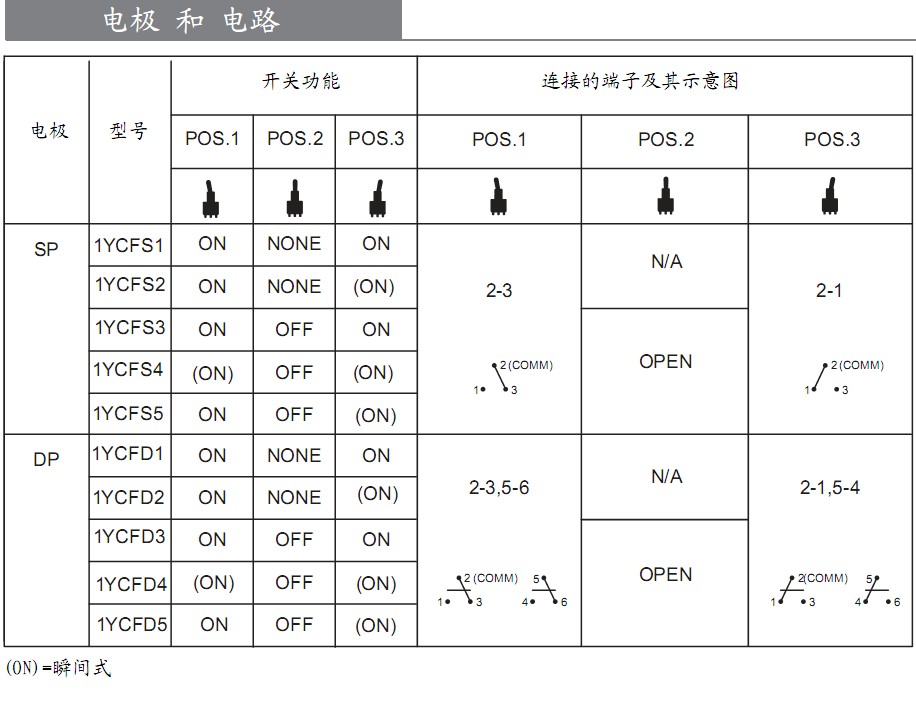

1YCF係列高壽命鈕子開關中文規格:
特色：超長壽命,可達到防水功能
應用範圍：重型工業遙控器,船用.
功率：取決於觸點材質：AC 125V 6A,AC 250V 3A,DC 30V 3A
機械壽命：電壓10V，直流電流0.1mA時，200000次操作以上
接觸電阻：最大10毫歐
絕緣電阻：電壓在500V時，最小500兆歐
絕緣強度：觸點間最低1000VAC至少一分鍾，在觸點與
外殼之間最低1000VAC至少一分鍾
工作溫度範圍：-30度到85度
防水性：在水下10公分處可操作100次

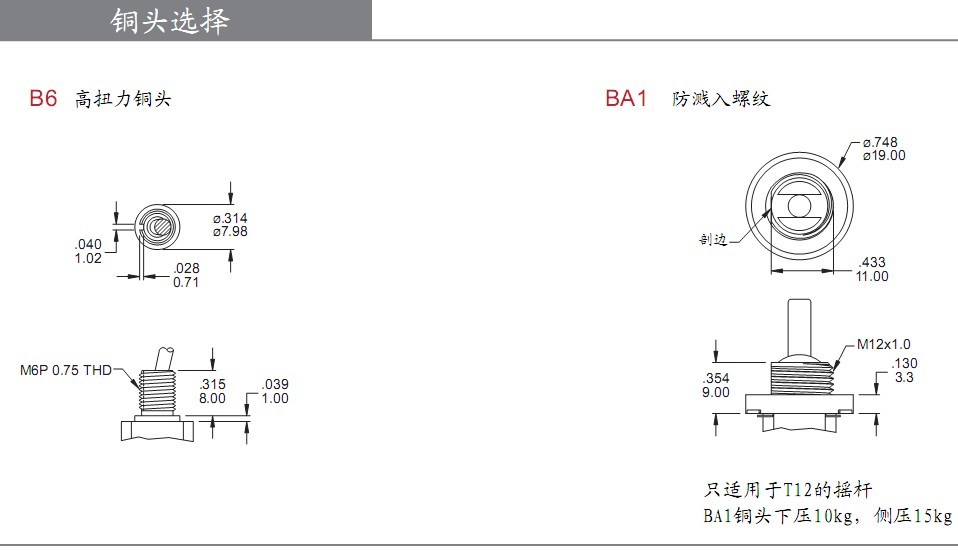

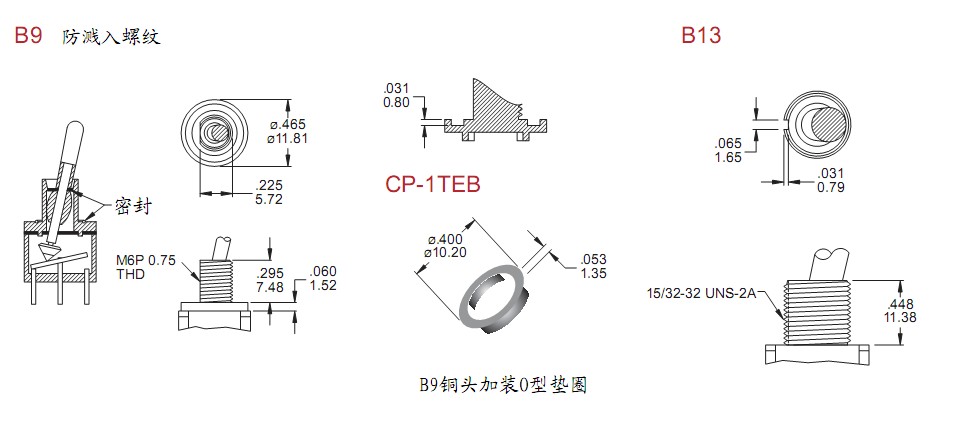

材質
外殼：苯二酸二烯丙酯樹脂（UL94V-0)

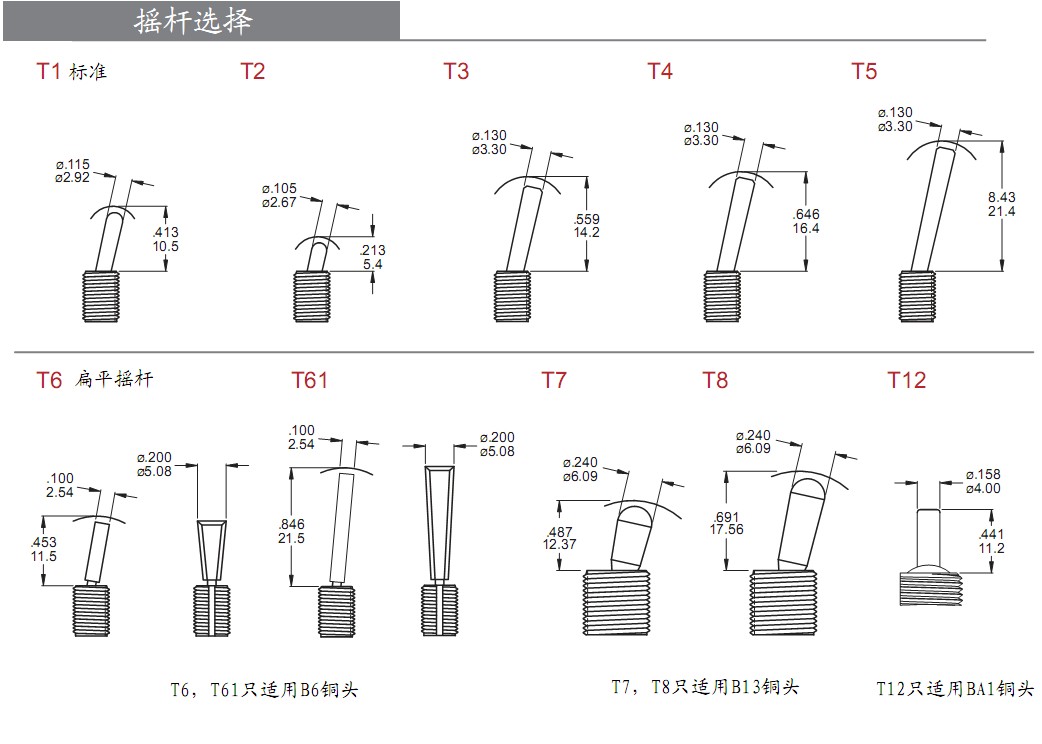

搖杆：黃銅鍍鉻
銅頭：黃銅鍍鎳
框架：不鏽鋼
支撐支架：銅鍍錫

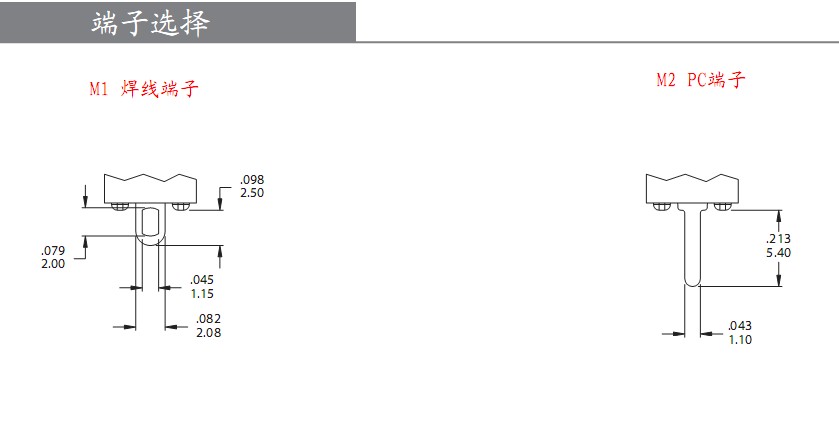

端子/彈片：鍍金或鍍銀.

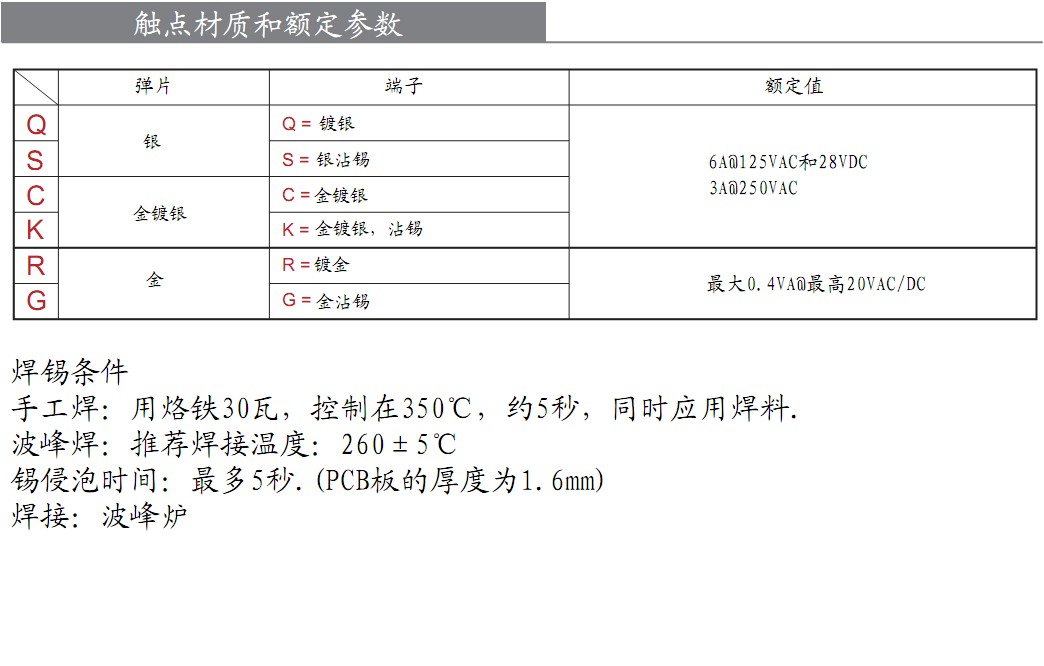

焊錫條件
手工焊：用烙鐵30瓦，控製在350℃，約5秒，同時應用焊料.
波峰焊：推薦焊接溫度：260±5℃
錫侵泡時間：最多5秒.(PCB板的厚度為1.6mm)
焊接：波峰爐
6A@125VAC和28VDC 3A@250VAC
最大0.4VA@最高20VAC/DC
1YCF係列高壽命鈕子開關英文規格:
SPECIFICATIONS
CONTACT RATING: AC 125V 6A, AC 250V 3A ,DC 30V 3A
MECHANICAL LIFE: 100,000 make-and-break cycles
DC 10V & 0.1mA.
CONTACT RESISTANCE: 10 mΩ max.
INSULATION RESISTANCE: 500V 500 MΩ min.
DIELECTRIC STRENGTH: 1,000 Vrms min.@sea level.
OPERATING TEMPERATURE: -30°C to 85°C.
WATER-RESISTANCE: 100 make-and-break cycles min
at 10 cm depth.
MATERIALS
CASE: Diallyl phthalate (DAP) (UL94v-0).
ACTUATOR: Brass,chrome plated.
BUSHING: Brass,nickel plated.
HOUSING: Stainless Steel.
SWITCH SUPPORT: Brass,tin plated.
TERMINAL/CONTACT: Brass,with silver or gold plated.
SOLDERING PROCESSES
MANUAL SOLDERING : Use soldering iron of 30 watts, controlled at 350°C
approximately 5 seconds while applying solder.
WAVE SOLDERING: Recommended Soldering Temperature: 260 ± 5°C
Duration of Solder Immersion: Max 5 sec. (PCB is 1.6mm in thickness)
